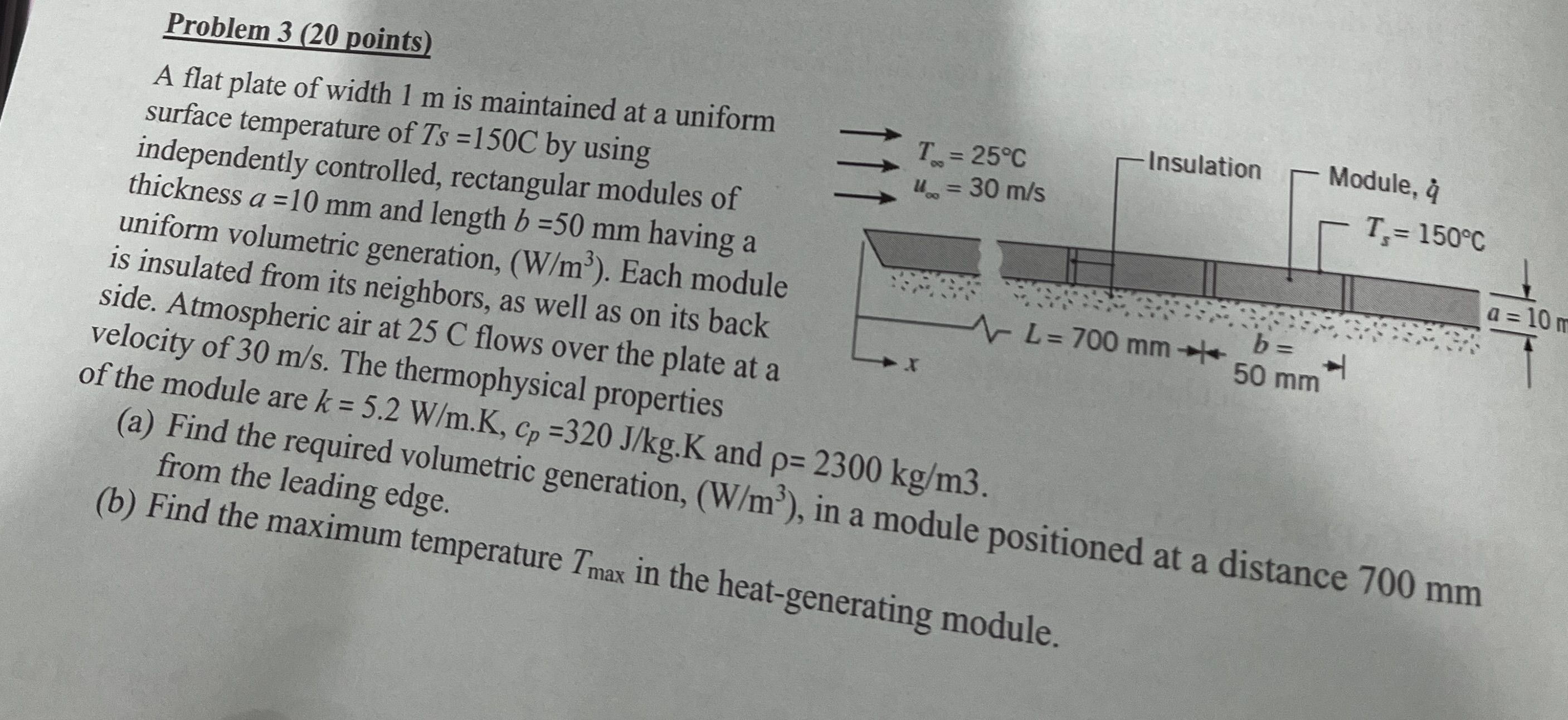

Problem 3 (20 points) A flat plate of width 1 m is maintained at a uniform surface temperature of Ts =150C by using independently controlled, rectangular modules of thickness a =10 mm and length b =50 mm having a uniform volumetric generation, (W/m). Each module is insulated from its neighbors, as well as on its back side. Atmospheric air at 25 C flows over the plate at a velocity of 30 m/s. The thermophysical properties 111 To = 25C u = 30 m/s Insulation Module, T = 150C a=10m b = L= 700 mm 50 mm X of the module are k = 5.2 W/m.K, cp =320 J/kg.K and p= 2300 kg/m3. (a) Find the required volumetric generation, (W/m), in a module positioned at a distance 700 mm from the leading edge. (b) Find the maximum temperature Tmax in the heat-generating module.
