Question: PROBLEM 3 . 3 ( a ) Determine the torque T that causes a maximum shearing stress of 4 5 MPa in the hollow cylindrical

PROBLEM 3.3

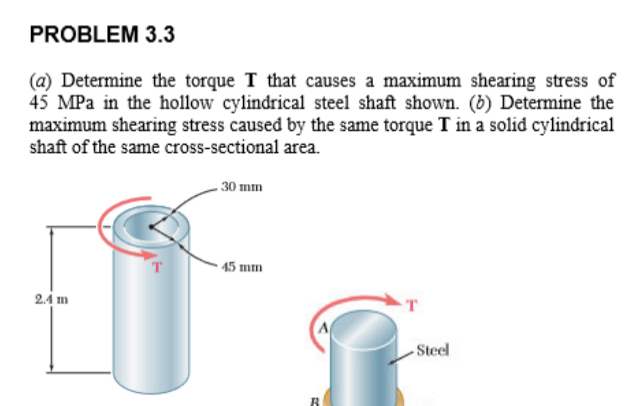

(a) Determine the torque T that causes a maximum shearing stress of
45 MPa in the hollow cylindrical steel shaft shown. (b) Determine the
maximum shearing stress caused by the same torque T in a solid cylindrical
shaft of the same cross-sectional area.
PROBLEM 3 . 3 ( a ) Determine the torque T that

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock

Students Have Also Explored These Related Mechanical Engineering Questions!

Q:

Problem 1 i - Determine the torque T that causes a maximum shearing stress of 5 0 MPa in the hollow cylindrical steel shaft shown. ii - Determine the maximum shearing stress caused by the same torque...

Q:

PROBLEM 3 . 1 Determine the torque T that causes a maximum shearing stress of 7 0 MPa in the steel cylindrical shaft shown. Show the free body diagram for the torque affect on the structure as well...

Q:

Determine the torque T that causes a maximum shearing stress of 70 MPa in the steel cylindrical shaft shown. 18 mm The torque T is N-m.

Q:

PROBLEM 3 Determine the torque T that causes a maximum shearing stress of 7 0 MPa in the steel cylindrical shaft shown. ( 2 pts ) A 1 0 kg block is attached to spring A and connected to spring B by a...

Q:

1. A hollow steel shaft 2.54m long must transmit a torque of 34 kN-m. The total angle of twist must not exceed 3 degrees. The maximum shearing stress must not exceed 110 MPa. What is the inside...

Q:

The solid circular shaft and the hollow tube shown in the figure are both attached to a rigid circular plate at their left ends. A torque TA = 2 kNm applied to theright end of the shaft is resisted...

Q:

! Required information A 2 4 2 5 - N * m torque T is applied to the hollow shaft as shown. NOTE: This is a multi - part question. Once an answer is submitted, you will be unable to return to this...

Q:

1. Two solid shafts of different materials are rigidly fastened together and attached to rigid supports as shown. The aluminum segment is 3 inches in diameter and G = 4 x '10 " 6 psi. The steel...

Q:

Two solid steel shafts are fitted with flanges that are then connected by bolts as shown. The bolts are slightly undersized and permit a 1 . 5 rotation of one flange with respect to the other before...

Q:

Problem 1 ( 4 0 points ) : Shaft B C is hollow with inner and outer diameters of 8 0 mm and 1 1 0 mm , respectively. Shafts A B and C D are solid and of diameter d . For the loading shown, determine...
