Question: Problem # 3 : 4 3 pts Initially switch S 1 is closed and S 2 is open so that inductor L , resistor R

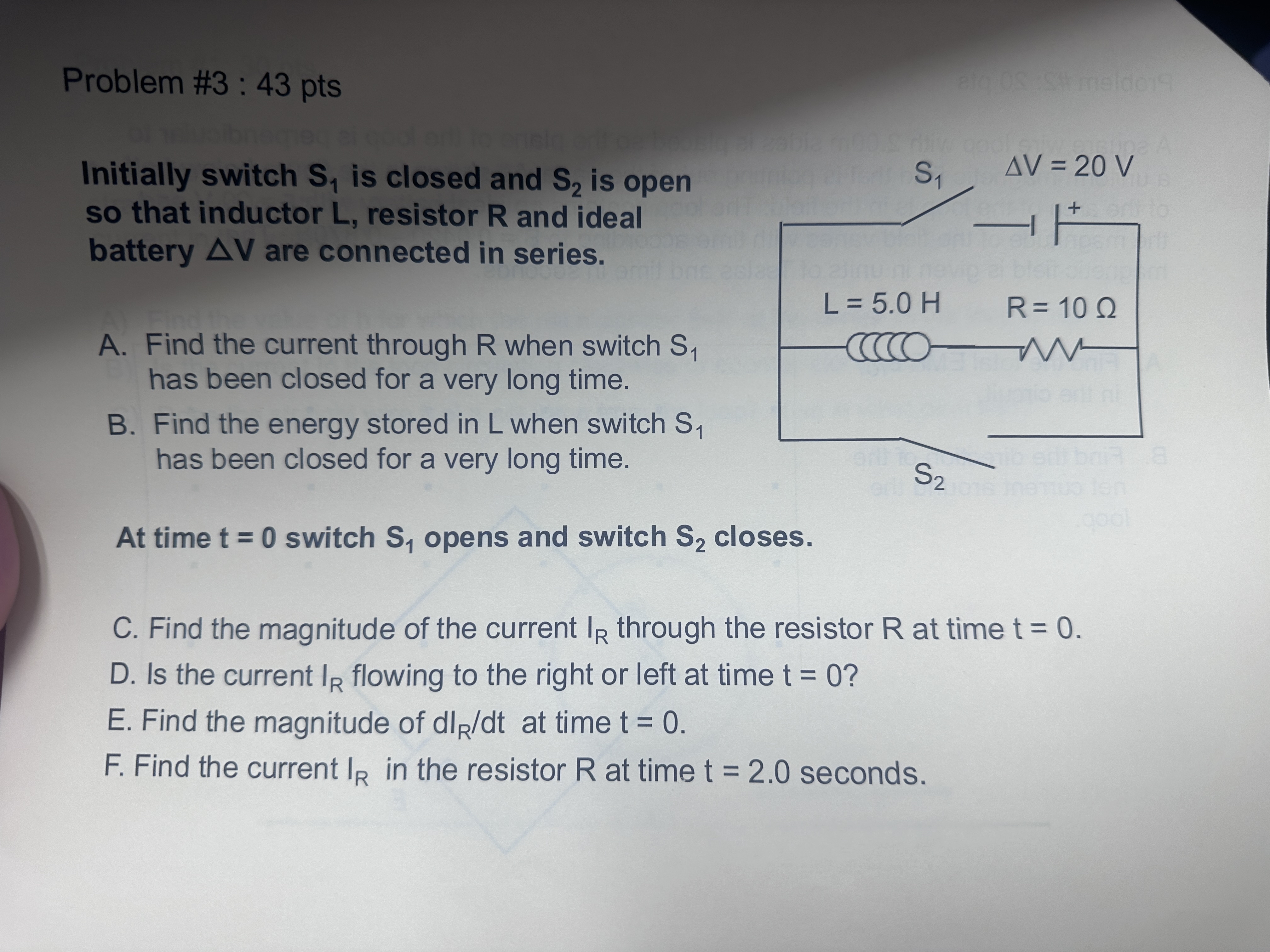

Problem #3 : 43 pts
Initially switch S1 is closed and S2 is open so that inductor L, resistor R and ideal battery V are connected in series.
A. Find the current through R when switch S1 has been closed for a very long time.
B. Find the energy stored in L when switch S1 has been closed for a very long time.
At time t=0 switch S1 opens and switch S2 closes.
C. Find the magnitude of the current IR through the resistor R at time t=0.
D. Is the current IR flowing to the right or left at time t=0?
E. Find the magnitude of dlRdt at time t=0.
F. Find the current IR in the resistor R at time t=2.0 seconds.
Problem # 3 : 4 3 pts Initially switch S 1 is
