Problem 3 (40 Pts): (A) Determine The Force Developed In Springs AB, AC And AD. (B) Assume Kab = Kac = Kad = 300 N/M, Determine The Deformation Of Each Spring. (Hints: This Problem Requires A Free Body Diagram And An Engineering Calculator To Solve System Of Equations. The Deformation Of The Spring Can Be Calculated By F = Ks Where S=Deformation) F = 800 N W

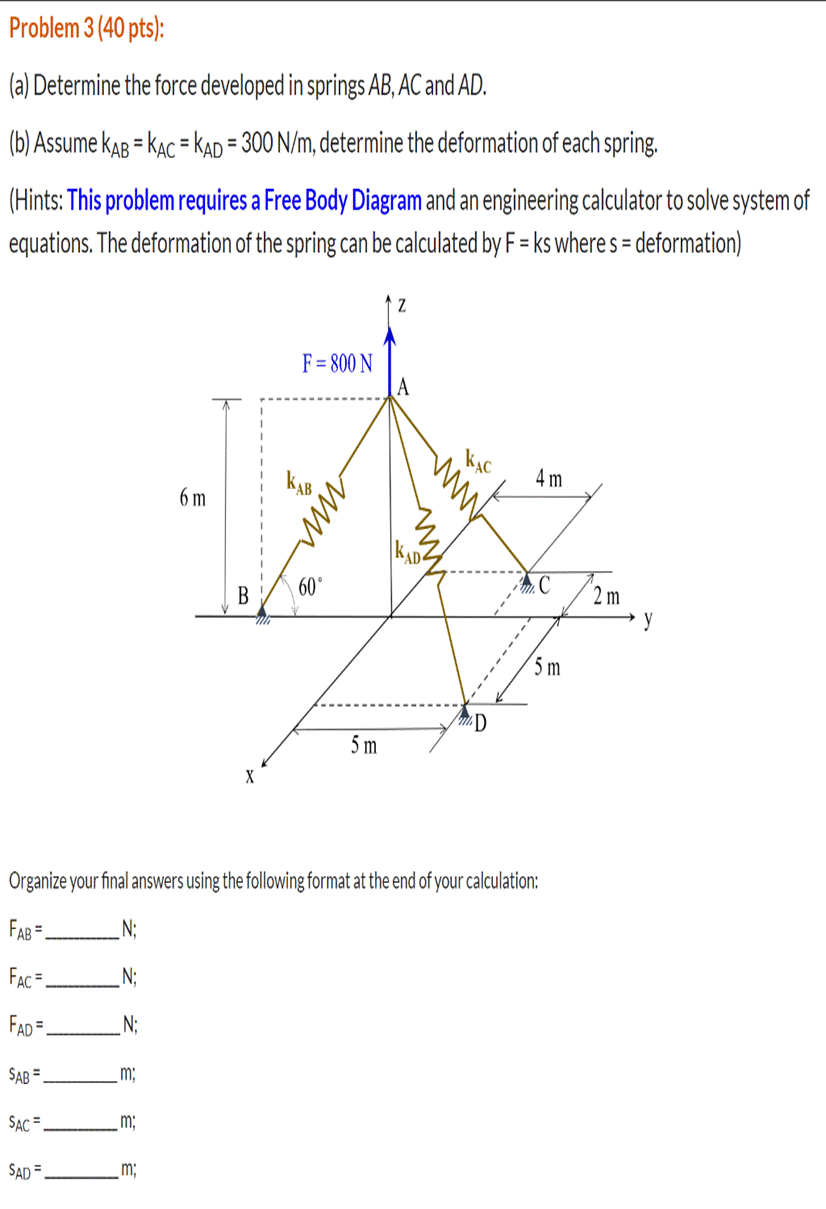

Problem 3 (40 pts): (a) Determine the force developed in springs AB, AC and AD. (b) Assume KAB KAC = KAD = 300 N/m, determine the deformation of each spring. (Hints: This problem requires a Free Body Diagram and an engineering calculator to solve system of equations. The deformation of the spring can be calculated by F = ks where s = deformation) 6 m B F= 800 N M 60 Z A KAC www 4 m www C 2 m y 5 m D 5m X Organize your final answers using the following format at the end of your calculation: FAB= FAC= FAD= _N; SAB m; SAC= m: SAD m;
