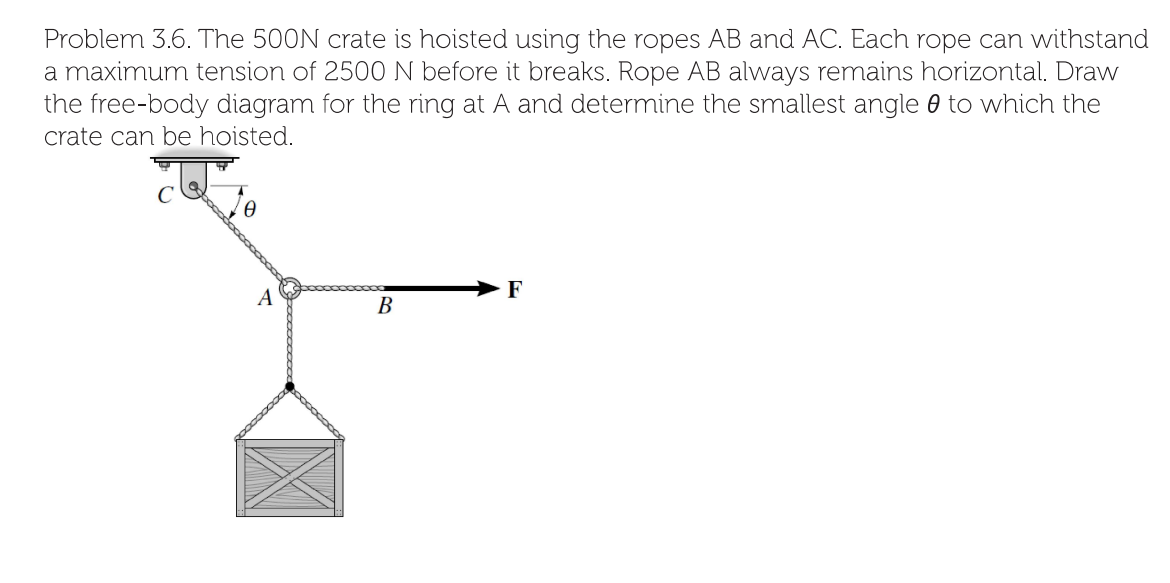

Question: Problem 3 . 6 . The 5 0 0 N crate is hoisted using the ropes A B and A C . Each rope can

Problem 3.6. The 500 N crate is hoisted using the ropes AB and AC. Each rope can withstand
a maximum tension of 2500 N before it breaks. Rope AB always remains horizontal. Draw
the free-body diagram for the ring at A and determine the smallest angle to which the
crate can be hoisted.
Problem 3 . 6 . The 5 0 0 N crate is hoisted

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
