Question: Problem 3 A 1 5 ft tall pole is supported by three cables. The pole is subjected only to vertical loading due to the tension

Problem 3

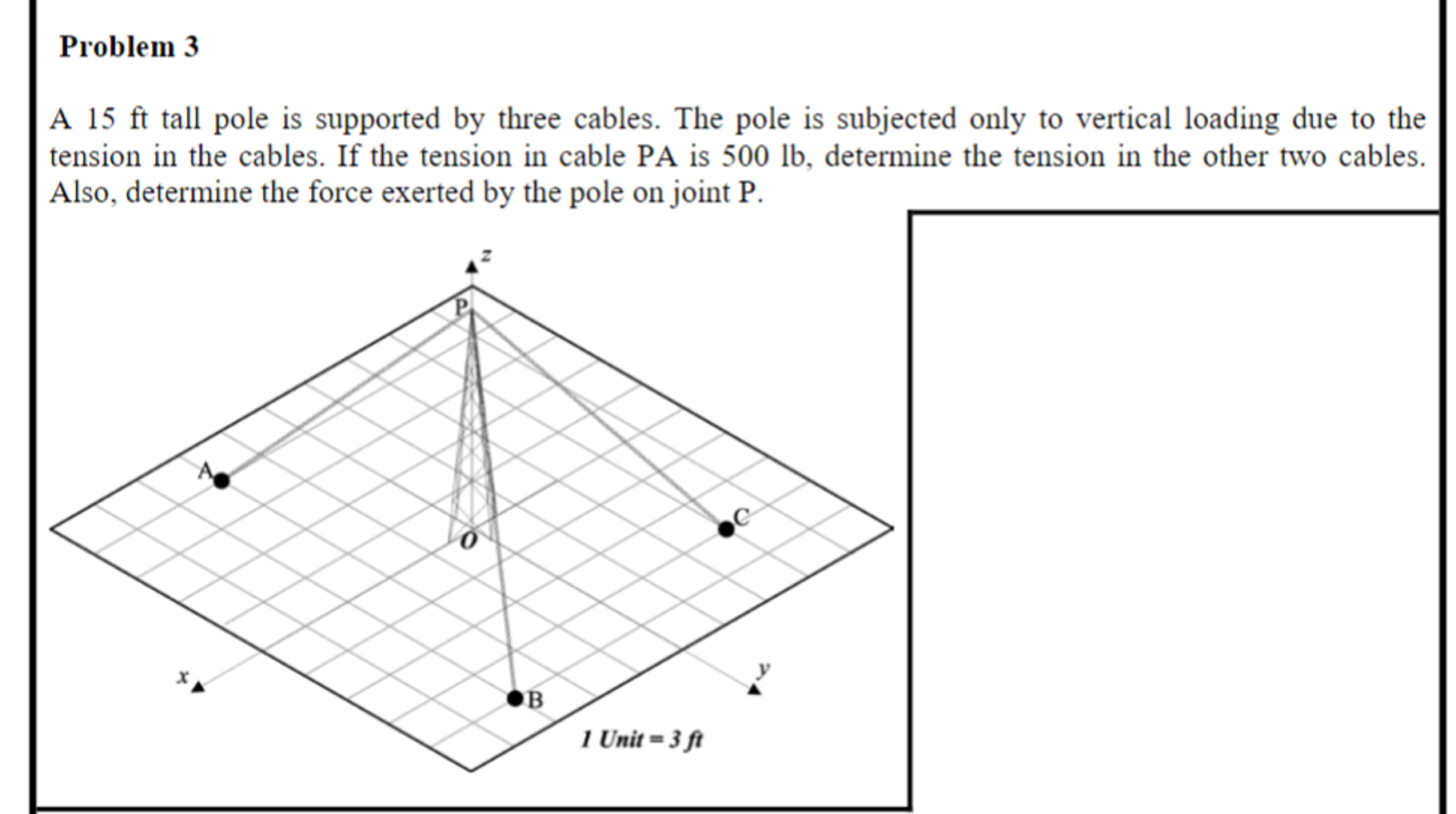

A 15 ft tall pole is supported by three cables. The pole is subjected only to vertical loading due to the
tension in the cables. If the tension in cable PA is 500 lb , determine the tension in the other two cables.
Also, determine the force exerted by the pole on joint P.
Problem 3 A 1 5 ft tall pole is supported by

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
