Question: Problem 3 . Consider the member shown below is exposed to axial load P u = 1 0 0 kips and the factored distributed load

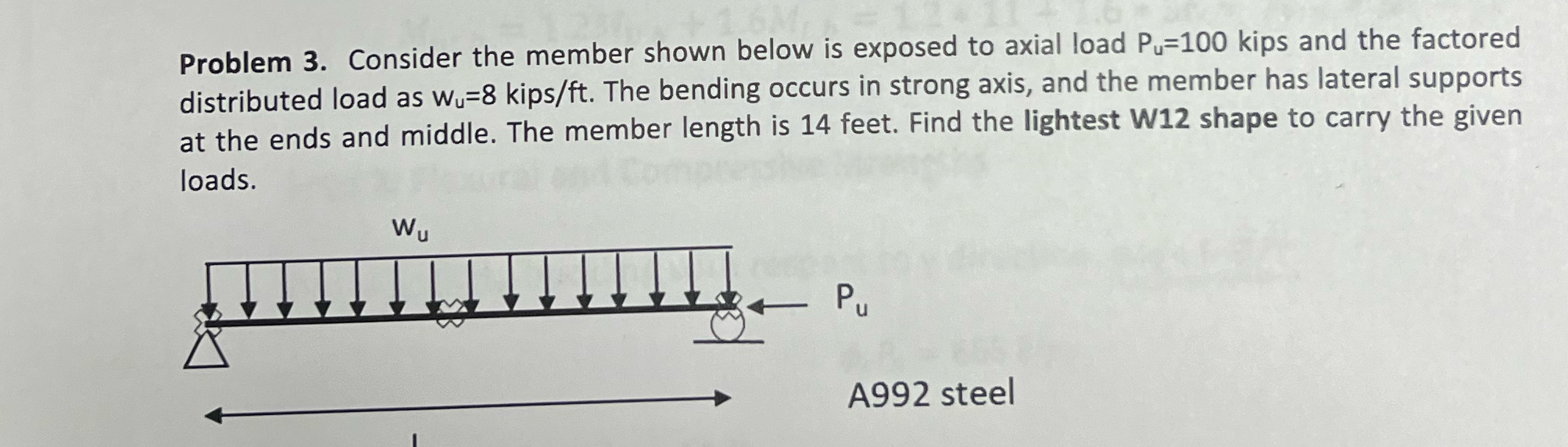

Problem 3. Consider the member shown below is exposed to axial load Pu=100 kips and the factored distributed load as wu=8kipsft. The bending occurs in strong axis, and the member has lateral supports at the ends and middle. The member length is 14 feet. Find the lightest W12 shape to carry the given loads.
992 steel
Problem 3 . Consider the member shown below is

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
