Question: Problem 4 . 1 0 5 Replace the force system acting on the beam by an equivalent resultant force and couple moment at point B

Problem 4.105
Replace the force system acting on the beam by an equivalent
resultant force and couple moment at point B.(Figure 1) Take
F1=385lb,F2=450lb, and F3=375lb.

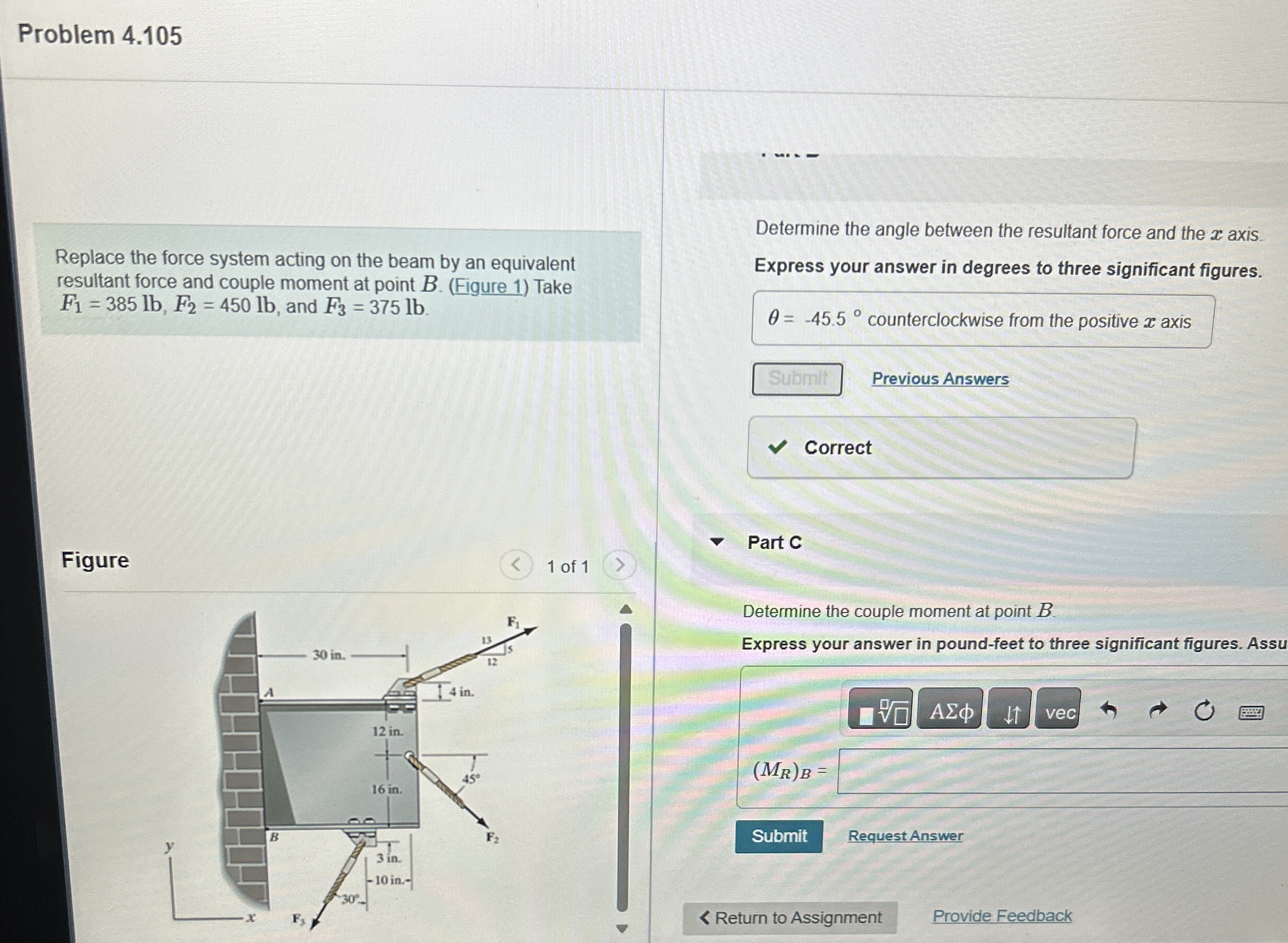

Figure
Determine the angle between the resultant force and the x axis.
Express your answer in degrees to three significant figures.
Previous Answers
Correct
Part C
Determine the couple moment at point B.
Express your answer in pound-feet to three significant figures. Assu
(MR)B=
Problem 4 . 1 0 5 Replace the force system acting

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock

Students Have Also Explored These Related Mechanical Engineering Questions!

Q:

2) Replace the force system acting on the beam by an equivalent resultant force and couple moment at Point A 3) Replace the force system acting on the beam by an equivalent resultant force and couple...

Q:

Replace the force system acting on the beam by an equivalent resultant force and couple moment at point A. (Figure 1) Take F1=260lb,F2=300lb, and F3=250lb. Determine the magnitude of the resultant...

Q:

Replace the force and couple moment system acting on the beam by an equivalent resultant force and couple moment at point A (Figure 1). Suppose that F = 660 N, F = 280 N, and M = 300 N. m. Determine...

Q:

Replace the force and couple moment system acting on the beam by an equivalent resultant force and couple moment at point A (Figure 1). Suppose that F = 660 N, F = 280 N, and M = 300 N-m Determine...

Q:

Problem 4 . 1 1 0 Replace the force system acting on the beam by an equivalent resultant force, and specify its point of application on the beam measured from point O ( Figure 1 ) . Take F 1 = 5 l b...

Q:

Replace the force system acting on the beam by an equivalent resultant force and couple moment at point A. A B 30 in. 30 250 lb 12 in. to 16 in. 3 in. -10 in.- 14 in. 45 260 lb 13 12 5 300 lb

Q:

Replace the force system acting on the post by a resultant force and a couple moment at point A. 500 N B 0.5 m 1 m 30 1 m 1 m A 0.2 m FI=250 N F300 N The magnitude of the resultant force: |FR| = N...

Q:

Replace the force system acting on the beam by an equivalent force and couple moment at pointB. 3 kN 2.5 kN 1.5 kN 20e - 4 m- -2 m- 2 m-

Q:

Replace the force system acting on the beam by an equivalent force and couple moment at pointA. 3 kN 2.5 kN 1.5 kN 3ur IB Fiat 4 m

Q:

Replace the force system acting on the truss by a resultant force and couple moment at point C. 6 ft 200 lb PC 150 lb -2 ft-2 ft2 ft- A O 100 lb -2 ft- B 5 500 lb

Q:
