Question: Problem 4 . 1 0 7 Solve Prob. 4 . 1 0 6 for a = 1 . 5 m . Problem 4 . 1

Problem 4.107
Solve Prob. 4.106 for a=1.5m.
Problem 4.106

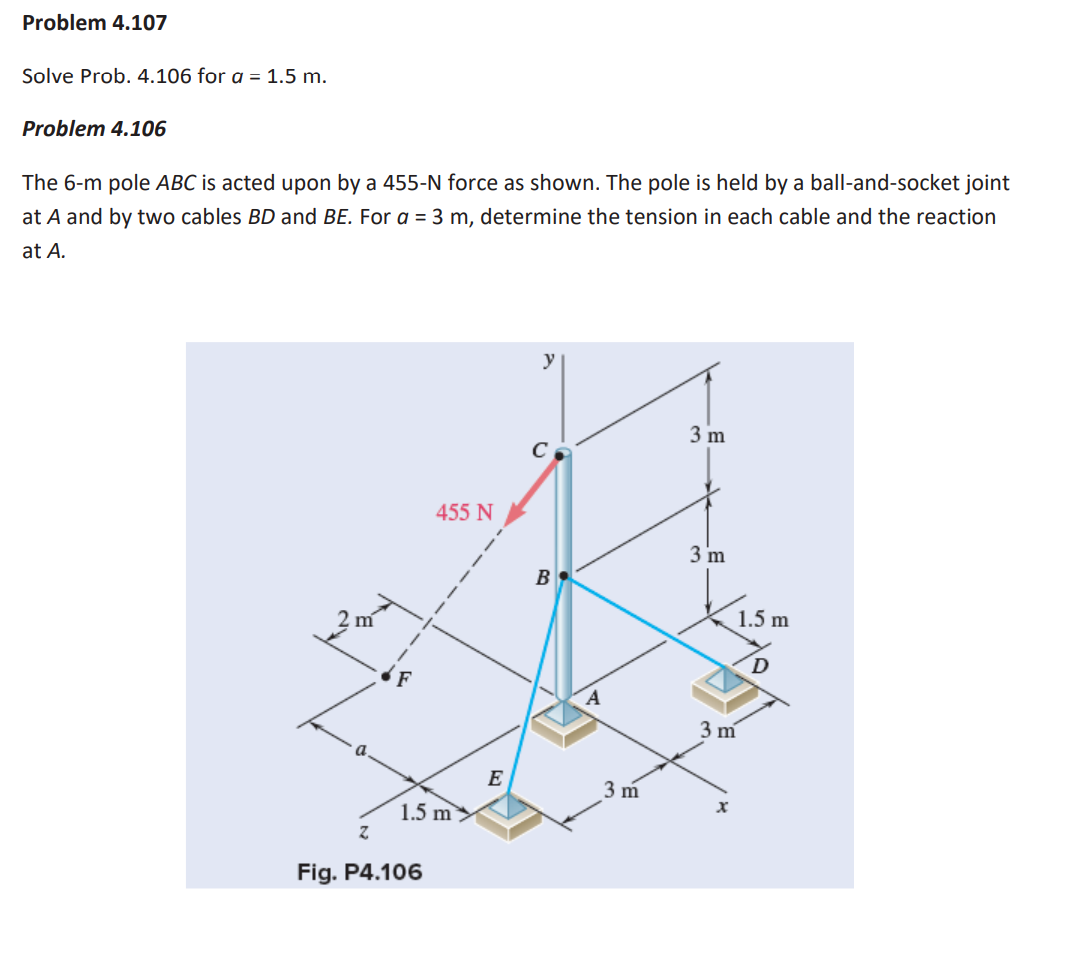

The 6-m pole ABC is acted upon by a 455-N force as shown. The pole is held by a ball-and-socket joint at A and by two cables BD and BE. For a=3m, determine the tension in each cable and the reaction at A.
Problem 4 . 1 0 7 Solve Prob. 4 . 1 0 6 for a = 1

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
