Question: Problem 4 ( 1 5 points ) . The structure below is subjected to a moving point load across the top line ABCDE. Draw the

Problem 4(15 points).

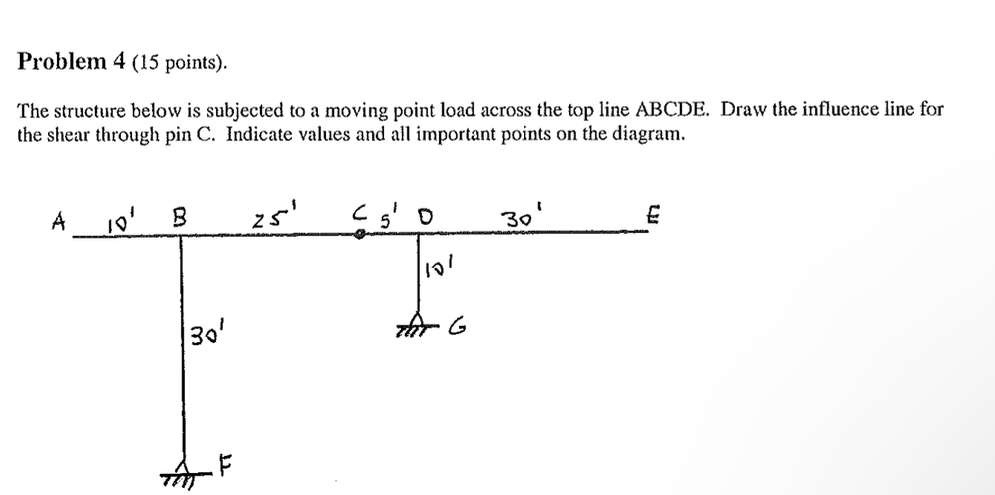

The structure below is subjected to a moving point load across the top line ABCDE. Draw the influence line for the shear through pin C. Indicate values and all important points on the diagram.
Problem 4 ( 1 5 points ) . The structure below is

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
