Question: PROBLEM 4 ( 2 0 POINTS, 1 0 POINTS EACH ) Given the below circuit. The comparator is supplied by a + 1 5 V

PROBLEM 4(20 POINTS, 10 POINTS EACH)
Given the below circuit. The comparator is supplied by a +15 V and -15 V DC power supply so its output will be +15 or -15 V based on inputs.
a) Find the two reference voltages: Vref-high and Vref-low?
b) Suppose that currently, the output is high (i.e., at +15 V ), what is the output voltage (stay the same at +15 V or change to -15 V ) if input 1 is 470 mV and input 2 is 500 mV ? Explain why?

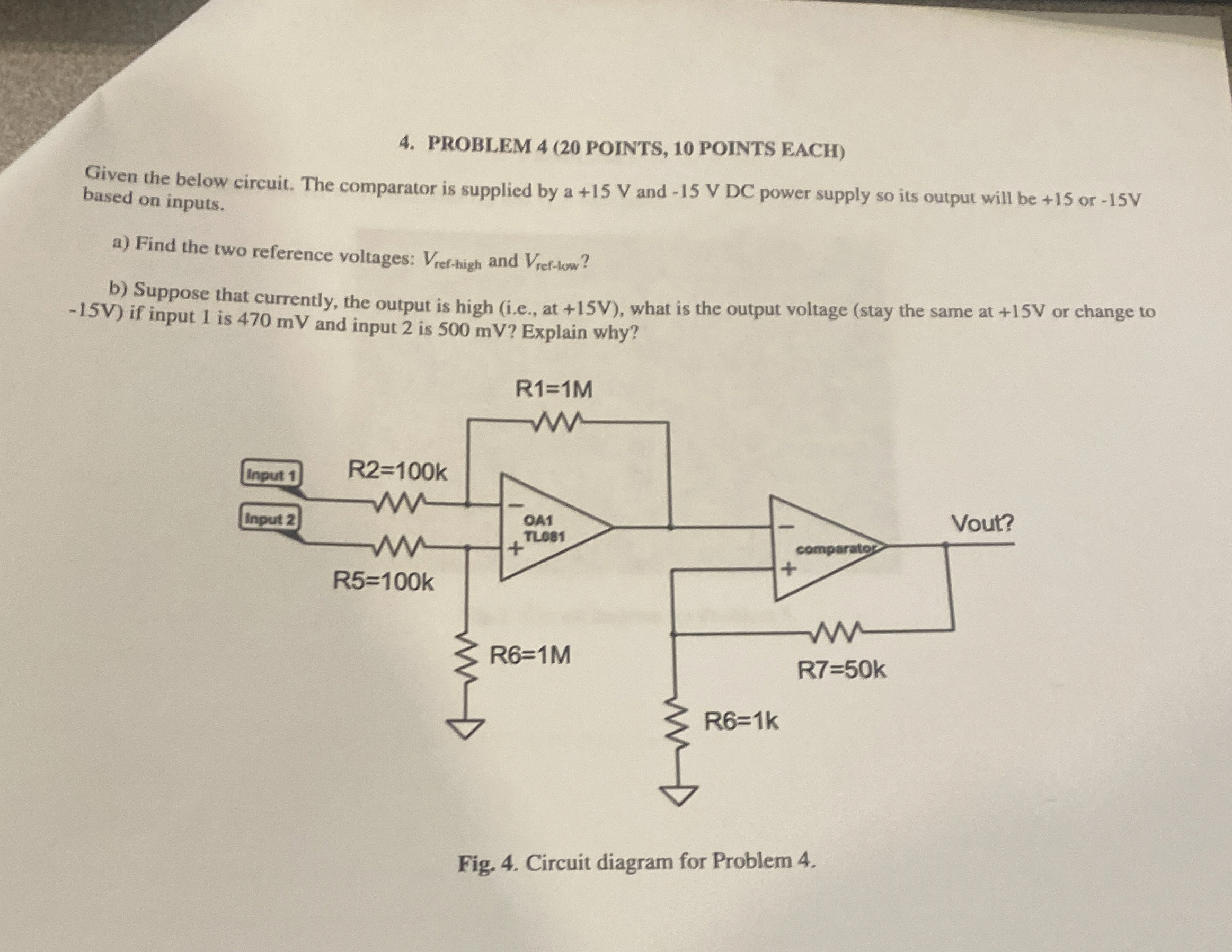

Fig. 4. Circuit diagram for Problem 4.
PROBLEM 4 ( 2 0 POINTS, 1 0 POINTS EACH ) Given
