Question: Problem 4 ( 2 0 points ) The following beam is supported with a roller at A and D , and a hinge at E

Problem 4(20 points)

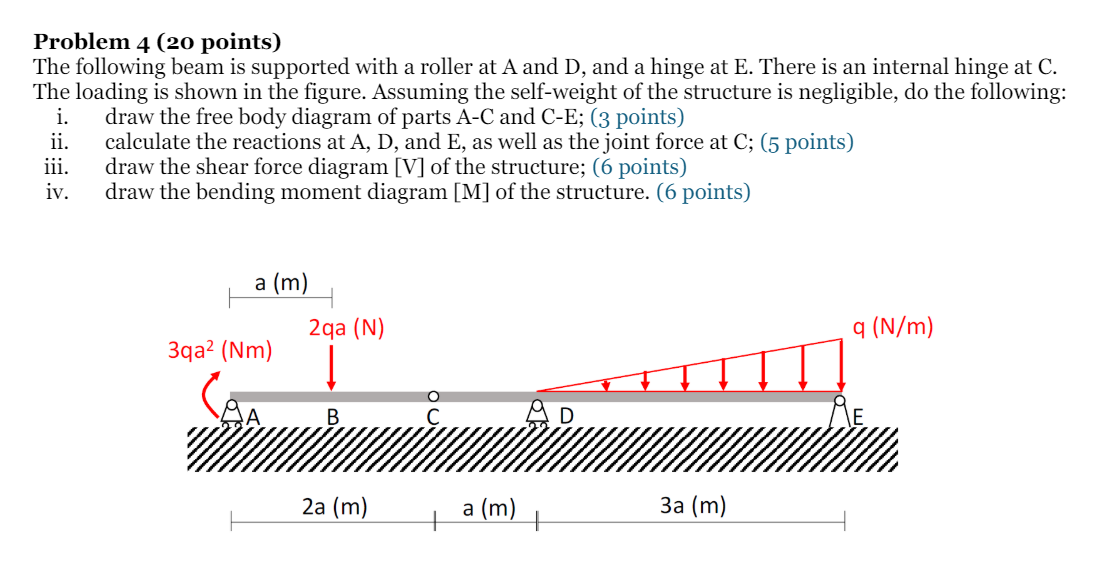

The following beam is supported with a roller at A and D, and a hinge at E. There is an internal hinge at C.
The loading is shown in the figure. Assuming the self-weight of the structure is negligible, do the following:
i. draw the free body diagram of parts A-C and C-E; (3 points)
ii. calculate the reactions at A, D, and E, as well as the joint force at C; (5 points)
iii. draw the shear force diagram [V] of the structure; (6 points)
iv. draw the bending moment diagram M of the structure. (6 points)
Problem 4 ( 2 0 points ) The following beam is

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
