Question: Problem 4 . 7 7 Consider the beam in ( Figure 1 ) . Part A Determine the magnitude of F so that the resultant

Problem 4.77

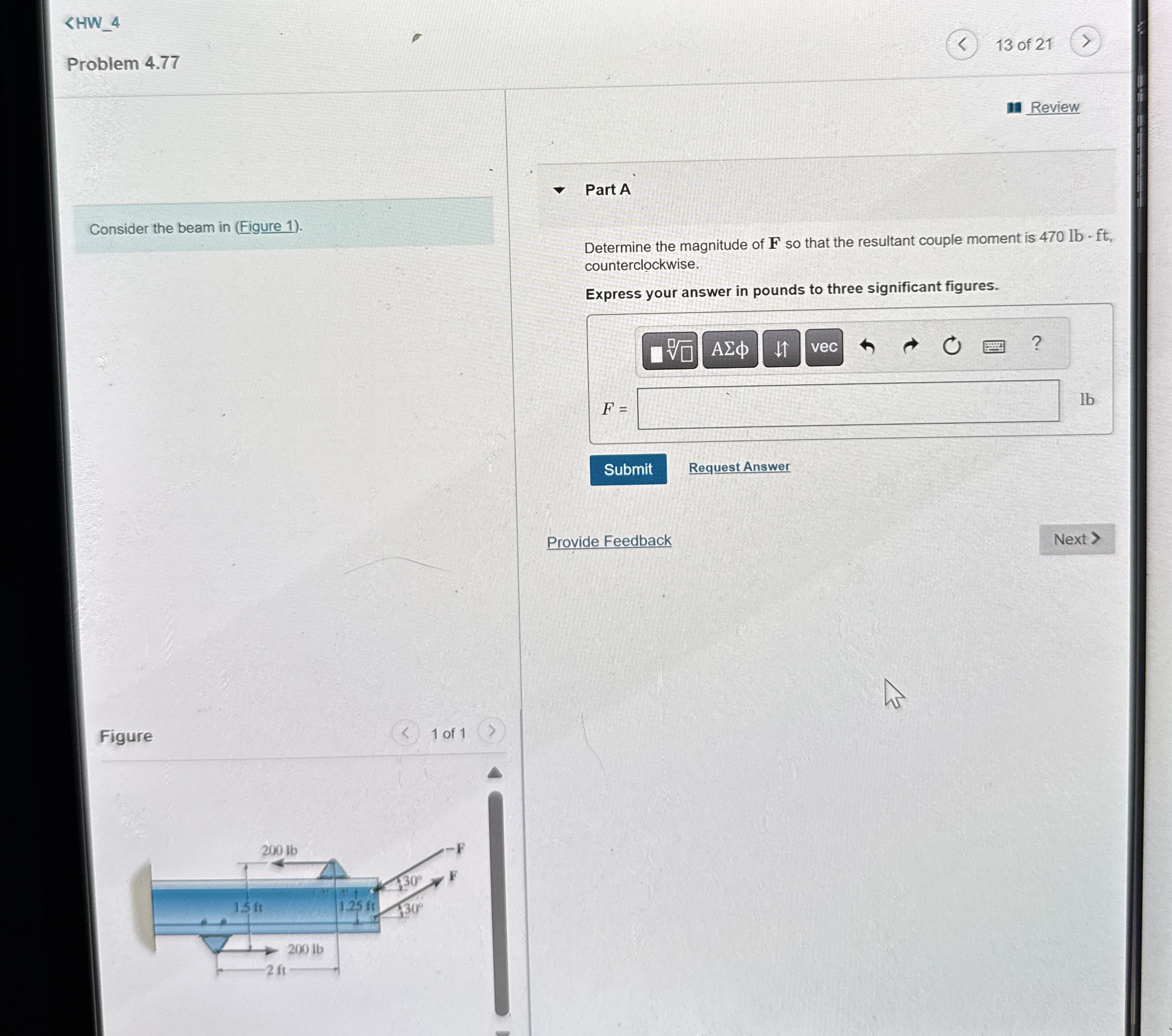

Consider the beam in (Figure 1).
Part A
Determine the magnitude of F so that the resultant couple moment is 470lb-ft,
counterclockwise.
Express your answer in pounds to three significant figures.
F=
Request Answer
Provide Feedback
Figure
Problem 4 . 7 7 Consider the beam in ( Figure 1 )

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
