Question: Problem 4 . ( 9 pts ) For the system represented by the Bode plot shown below, calculate the steady - state response for the

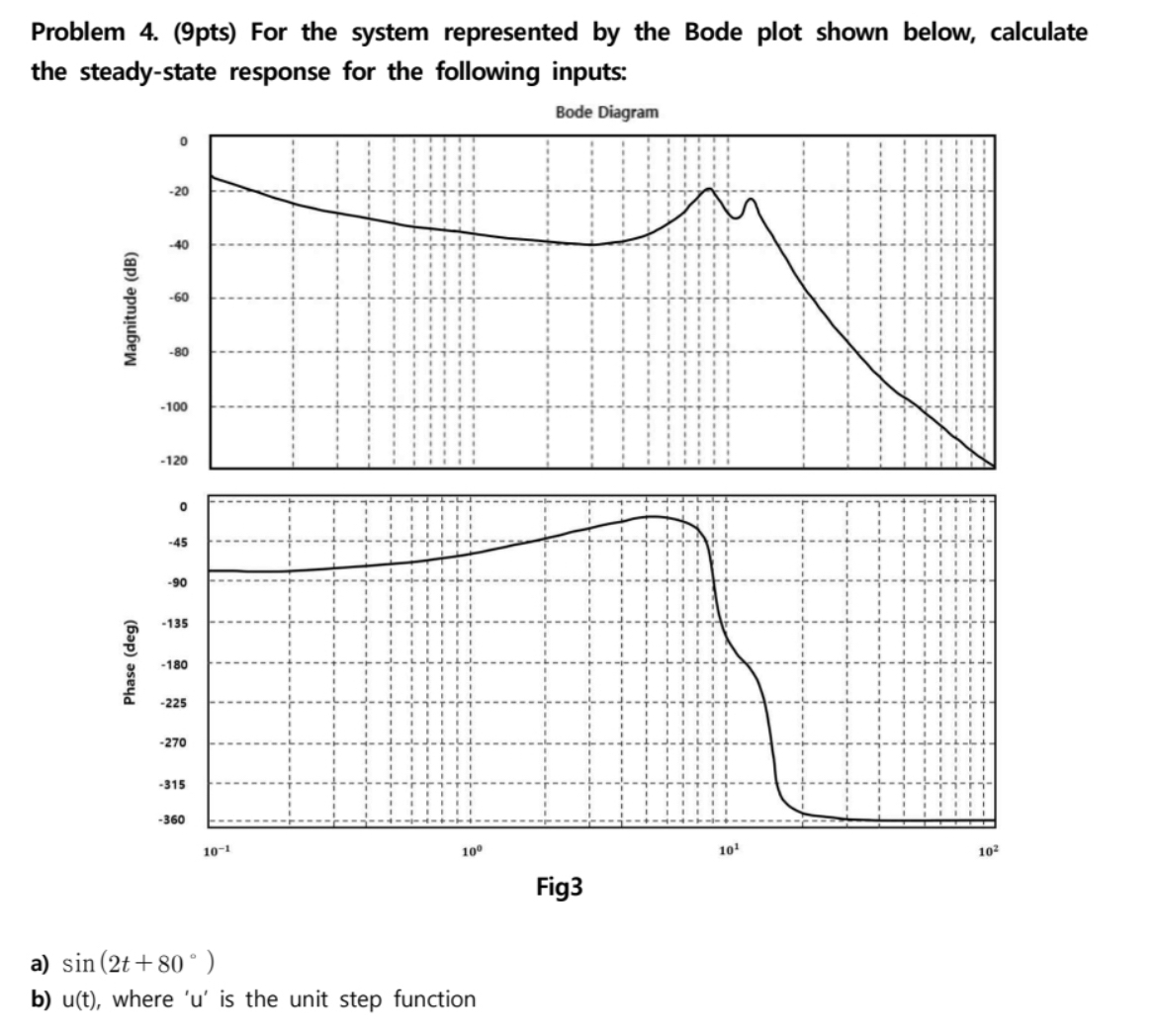

Problem 4.(9pts) For the system represented by the Bode plot shown below, calculate the steady-state response for the following inputs:
Bode Diagram
Fig3
a)sin(2t+80)
b)u(t), where 'u' is the unit step function
