Question: Problem 4 : A 2 . 4 meter long boom is held by a ball - and - socket joint at C and by two

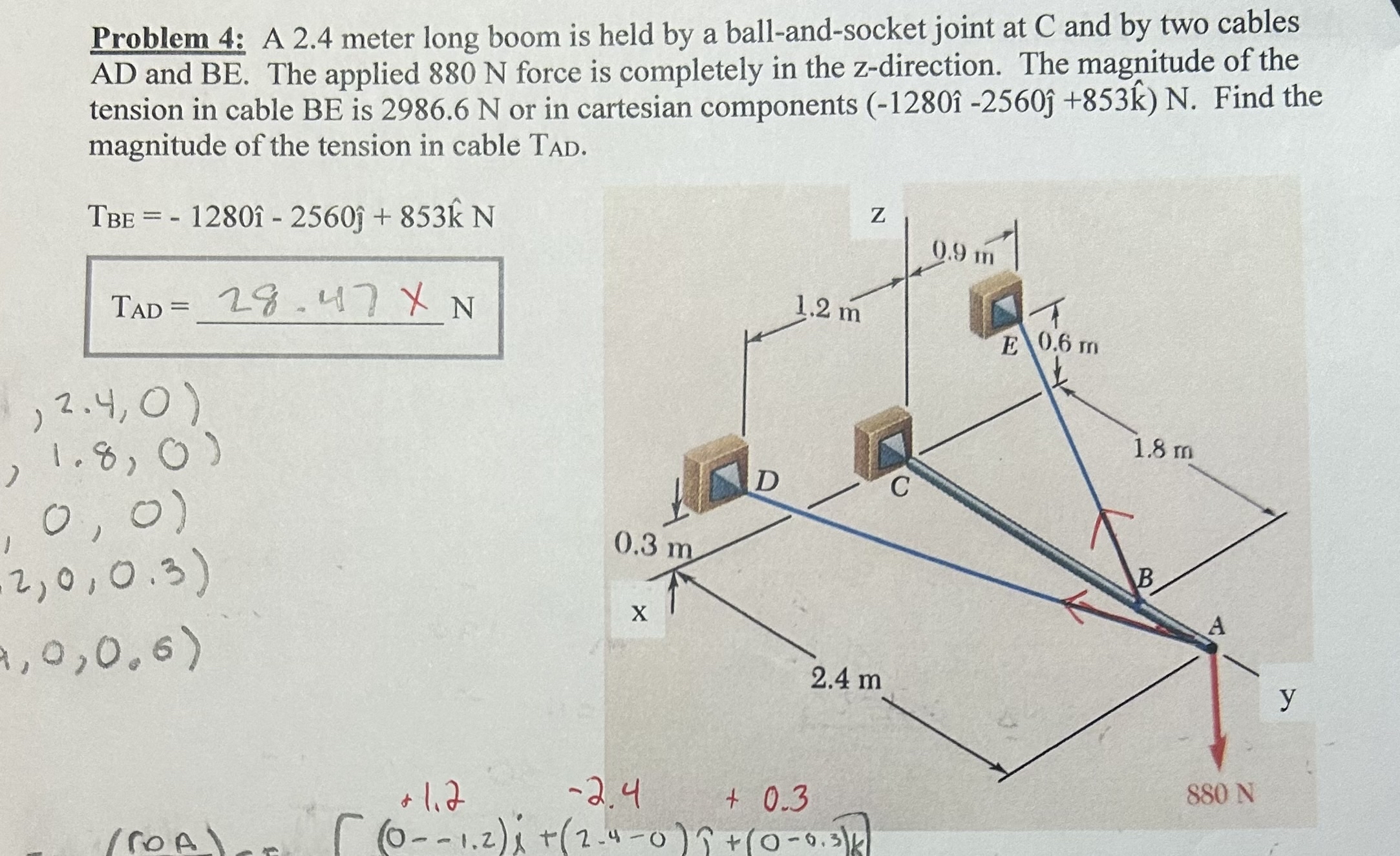

Problem 4: A 2.4 meter long boom is held by a ball-and-socket joint at C and by two cables AD and BE . The applied 880 N force is completely in the z -direction. The magnitude of the tension in cable BE is 2986.6 N or in cartesian components (-1280hat()-2560hat()+853hat(k))N. Find the magnitude of the tension in cable TAD.
TBE=-1280hat()-2560hat()+853hat(k)N
,2.4,
1.8,0
00)
2,0,0.3
Problem 4 : A 2 . 4 meter long boom is held by a
