Question: Problem 4 . A unity feedback control system has the following open - loop transfer function, G ( s ) = K ( s 2

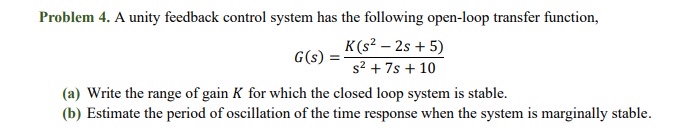

Problem 4. A unity feedback control system has the following open-loop transfer function,
G(s)=K(s2-2s+5)s2+7s+10
(a) Write the range of gain K for which the closed loop system is stable.
(b) Estimate the period of oscillation of the time response when the system is marginally stable.
Problem 4 . A unity feedback control system has

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
