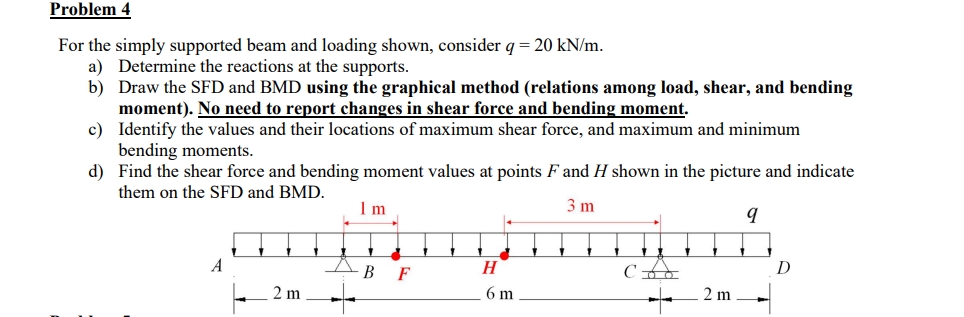

Problem $4$

For the simply supported beam and loading shown, consider $\backslash ($ q$=20\backslash$mathrm$\{$kN$\}/\backslash$mathrm$\{$m$\}\backslash ).$

a$)$ Determine the reactions at the supports.

b$)$ Draw the SFD and BMD using the graphical method $($relations among load, shear, and bending moment$).$ No need to report changes in shear force and bending moment.

c$)$ Identify the values and their locations of maximum shear force, and maximum and minimum bending moments.

d$)$ Find the shear force and bending moment values at points $\backslash ($ F $\backslash )$ and $\backslash ($ H $\backslash )$ shown in the picture and indicate
