Question: Problem 5 Knowing that the tension in cable AC is 1 2 6 0 N , determine ( a ) the angle between cable AC

Problem 5

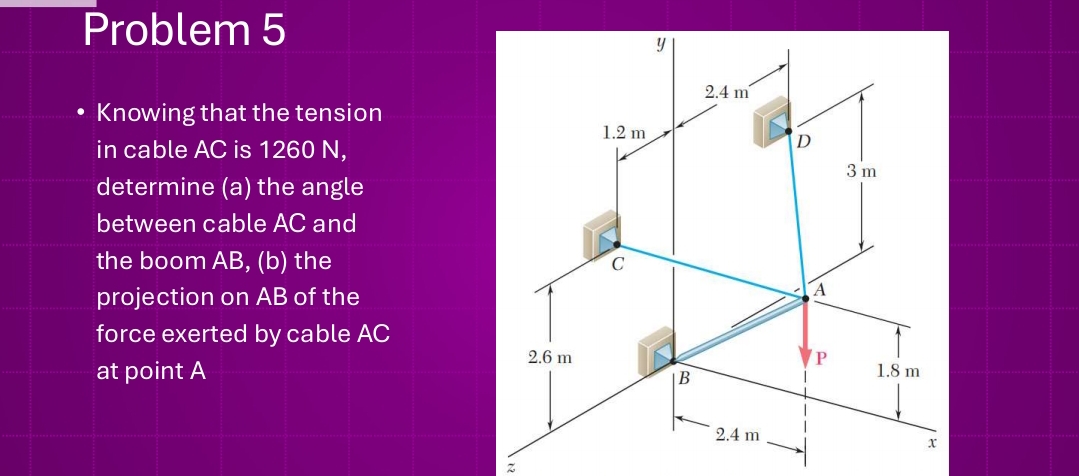

Knowing that the tension in cable AC is 1260 N , determine (a) the angle between cable AC and the boom AB,(b) the projection on AB of the force exerted by cable AC at point A
Problem 5 Knowing that the tension in cable AC is

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock

Students Have Also Explored These Related Mechanical Engineering Questions!

Q:

Knowing that the tension in cable AC is 1 2 6 0 N , determine ( a ) the angle between cable AC and the boom AB , ( b ) the projection on AB of the force exerted by cable AC at point A . Ans: = 5 9 ....
