Question: Problem 5 : Water at 2 1 C flows from the tank through the 2 5 mm diameter galvanized iron pipe. If the faucet (

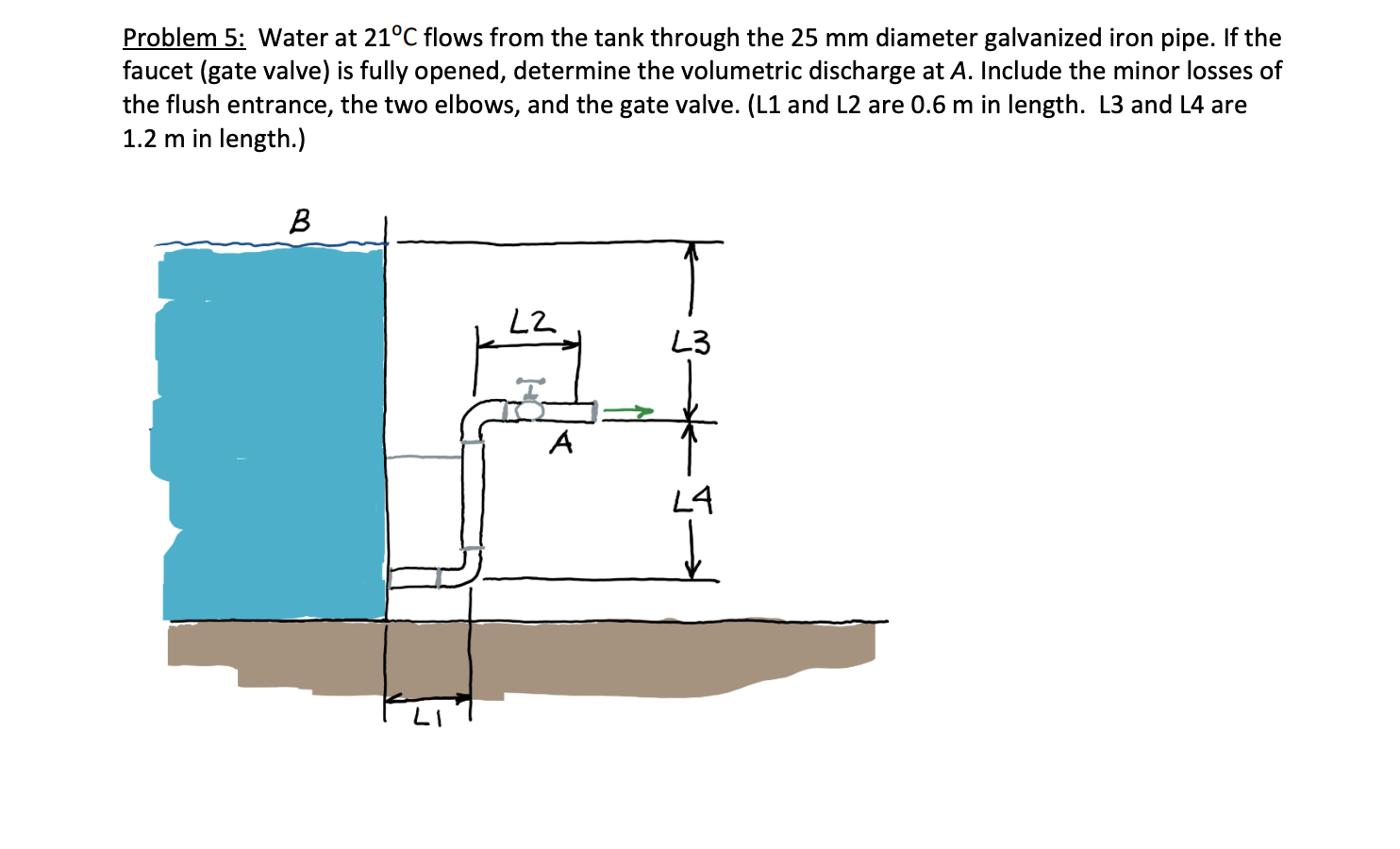

Problem 5: Water at 21C flows from the tank through the 25 mm diameter galvanized iron pipe. If the faucet (gate valve) is fully opened, determine the volumetric discharge at A. Include the minor losses of the flush entrance, the two elbows, and the gate valve. (L1 and L2 are 0.6 m in length. L3 and L4 are 1.2 m in length.)
Problem 5 : Water at 2 1 C flows from the tank
