Question: Problem ( 6 ) : 2 0 Points Consider the two loop circuit at the right. Using only symbols, derive a matrix equation to find

Problem

(6)

20

Points

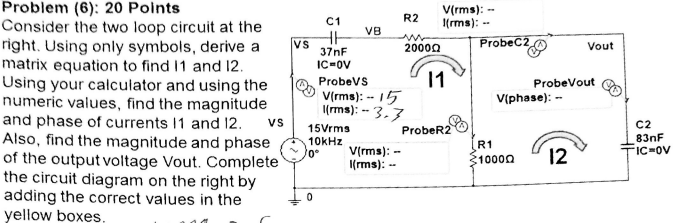

Consider the two loop circuit at the right. Using only symbols, derive a matrix equation to find

11

and

12 .

Using your calculator and using the numeric values, find the magnitude and phase of currents

11

and

12 .

vs Also, find the magnitude and phase of the output voltage Vout. Complete the circuit diagram on the right by adding the correct values in the yellow boxes. answer the question in an easier and understandable way and make sure to check if the answers are right
