Question: Determine the transfer function of this system by reducing its shown block diagram. Select one: a . None of these b . C ( s

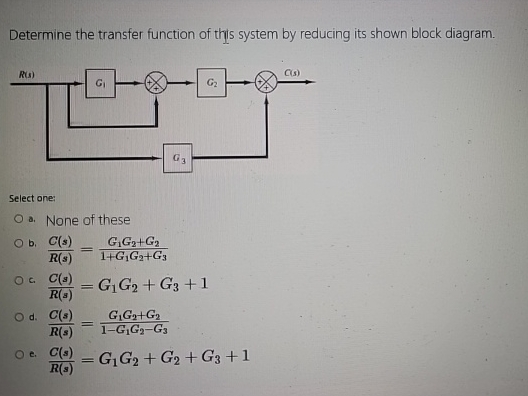

Determine the transfer function of this system by reducing its shown block diagram.
Select one:
a. None of these
b.C(s)R(s)=G1G2+G21+G1G2+G3
c.C(s)R(s)=G1G2+G3+1
d.C(s)R(s)=G1G2+G21-G1G2-G3
e.C(s)R(s)=G1G2+G2+G3+1
Determine the transfer function of this system by

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
