Question: PROBLEM 6 . 3 9 The vertical shear is 1 2 0 0 lb in a beam having the cross section shown. Determine ( a

PROBLEM 6.39

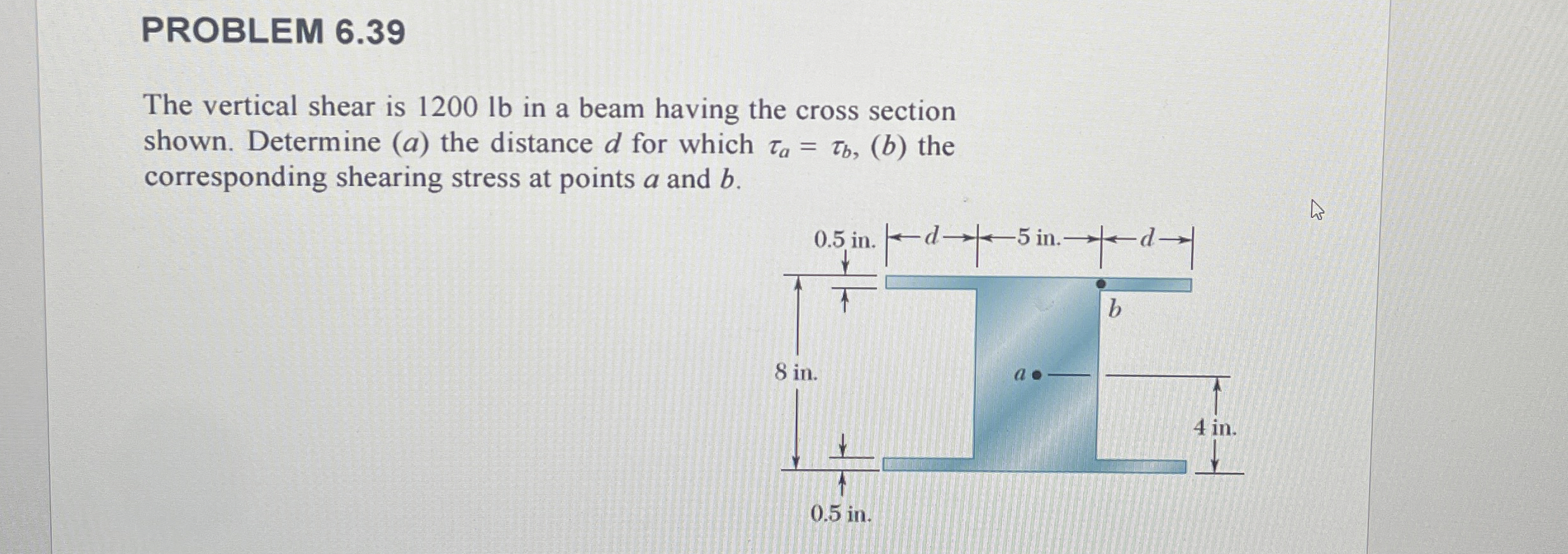

The vertical shear is 1200 lb in a beam having the cross section shown. Determine (a) the distance d for which a=b,(b) the corresponding shearing stress at points a and b.
PROBLEM 6 . 3 9 The vertical shear is 1 2 0 0 lb

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
