Question: ( 4 points ) Refer to Fig. 2 to answer the questions 7 through 1 0 . Figure 2 ( 6 points ) Refer to

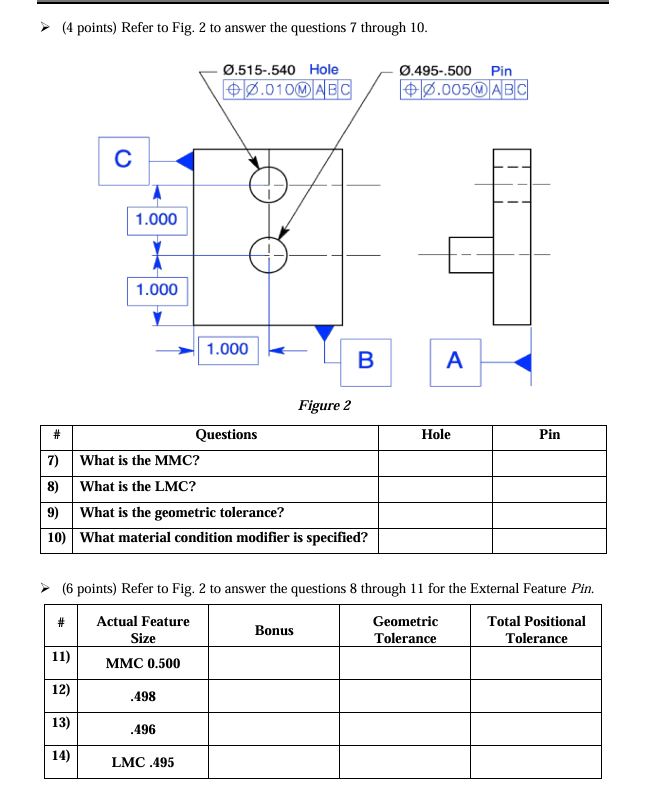

(4 points) Refer to Fig. 2 to answer the questions 7 through 10.
Figure 2
(6 points) Refer to Fig. 2 to answer the questions 8 through 11 for the External Feature Pin.
( 4 points ) Refer to Fig. 2 to answer the

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
