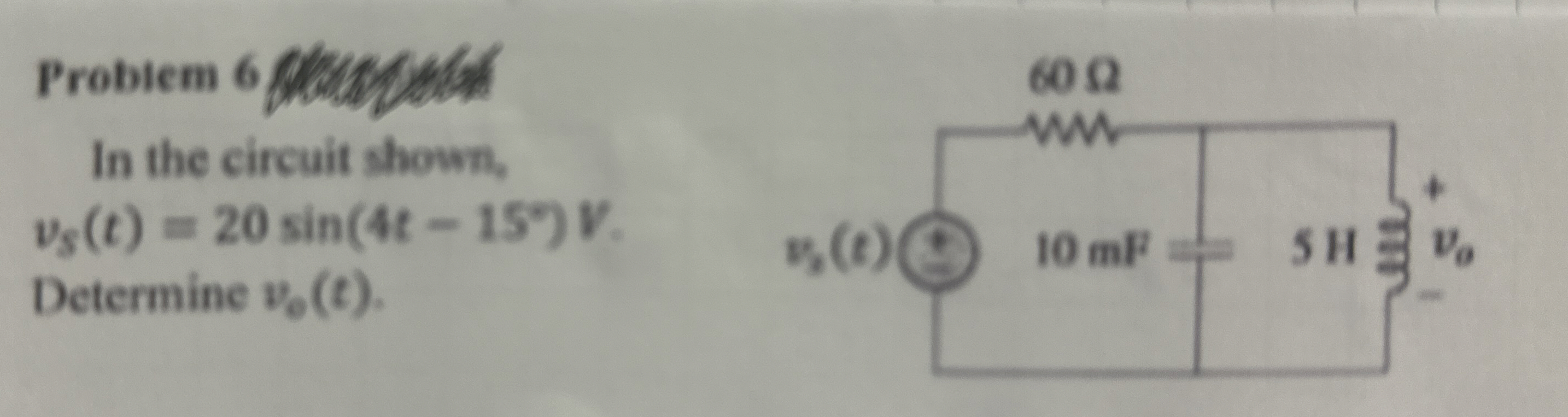

Question: Problem 6 In the circuit shown, v s ( t ) = 2 0 s i n ( 4 t - 1 5 ) v

Problem 6
In the circuit shown,
vs(t)=20sin(4t-15)v
Determine v0(t).
