Problem $6.$

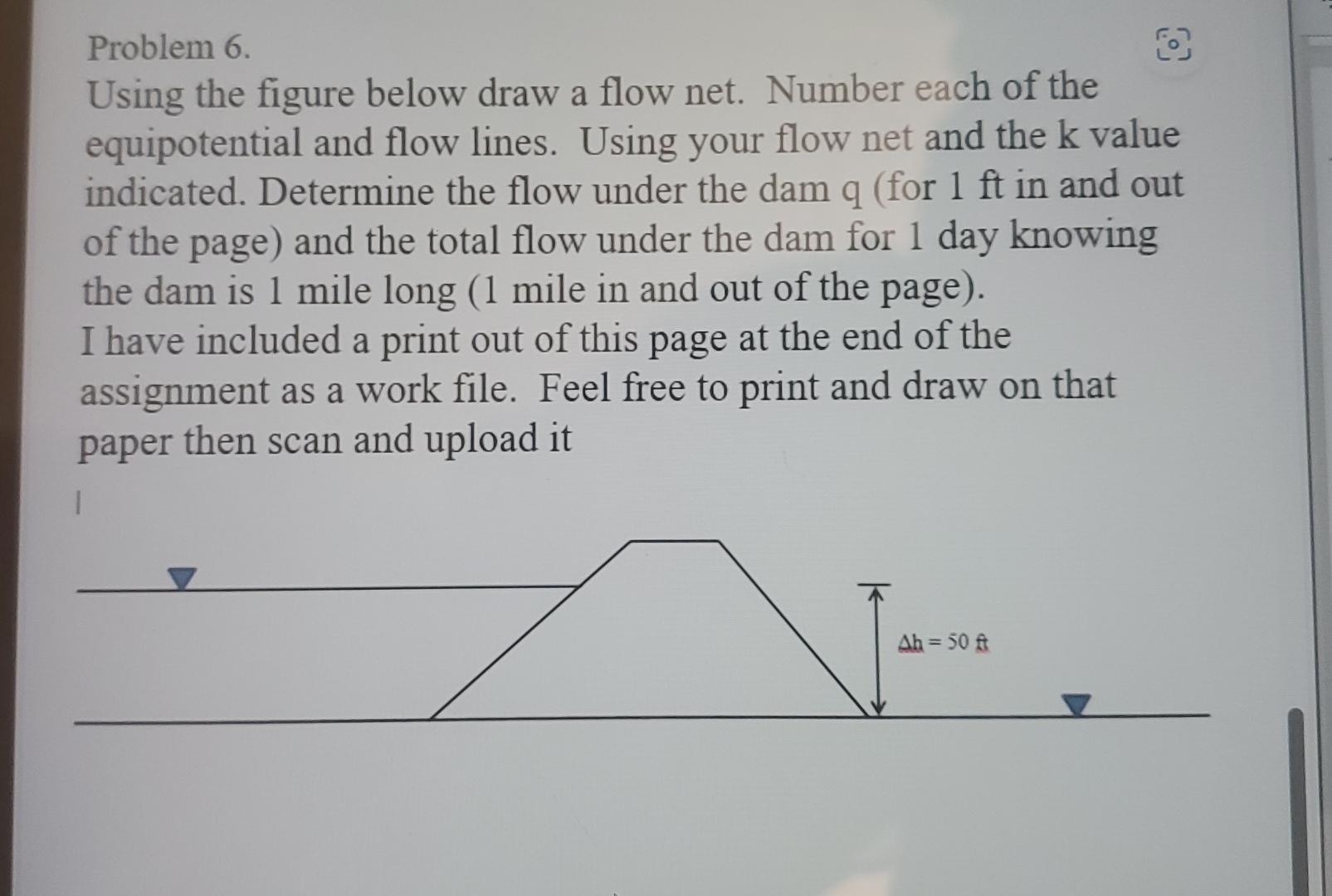

Using the figure below draw a flow net. Number each of the equipotential and flow lines. Using your flow net and the k value indicated. Determine the flow under the dam q $($for $1$ ft in and out of the page$)$ and the total flow under the dam for $1$ day knowing the dam is $1$ mile long $(1$ mile in and out of the page$).$ I have included a print out of this page at the end of the assignment as a work file. Feel free to print and draw on that paper then scan and upload it
