Question: Problem 7 . 3 - 1 8 An element in plane stress is subject to stresses x = 2 1 5 0 kPa, y =

Problem 7.3-18

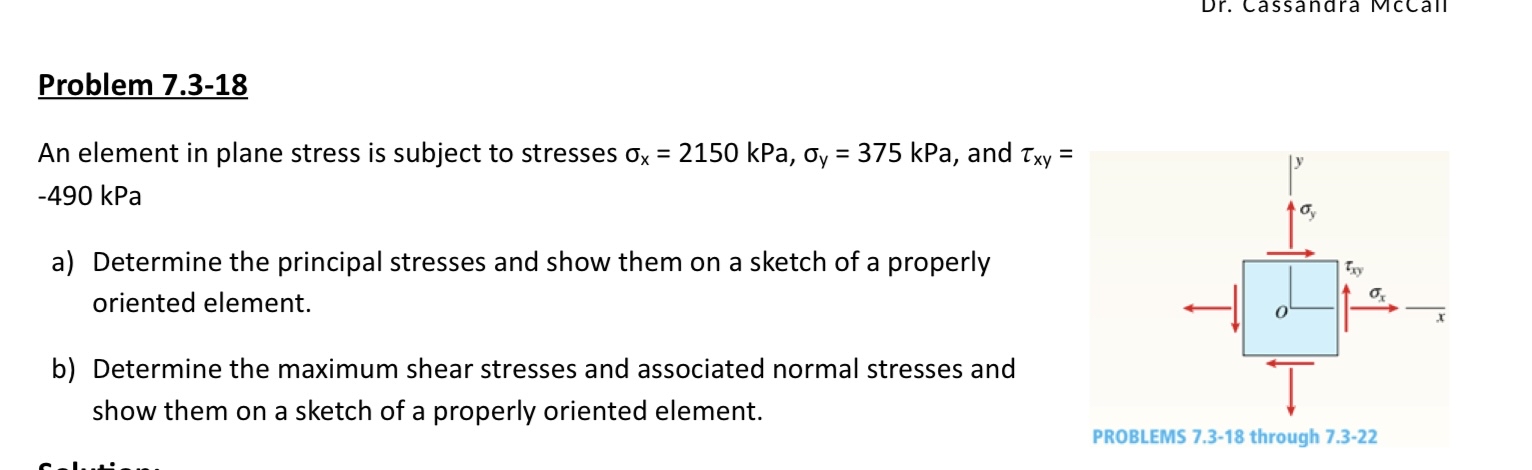

An element in plane stress is subject to stresses x=2150kPa,y=375kPa, and xy=-490 kPa
a) Determine the principal stresses and show them on a sketch of a properly oriented element.
b) Determine the maximum shear stresses and associated normal stresses and show them on a sketch of a properly oriented element.
Problem 7 . 3 - 1 8 An element in plane stress is

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
