Question: PROBLEM 7 Gear A is the input and revolves at 1 2 0 0 rpm clockwise viewed from the left end. The input torque is

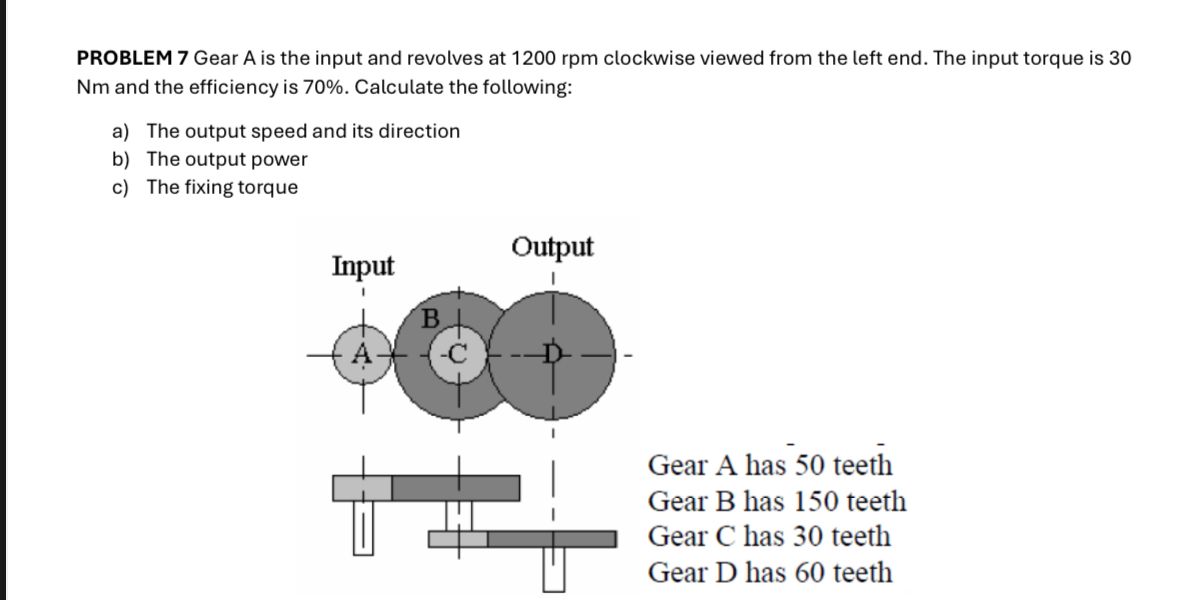

PROBLEM 7 Gear A is the input and revolves at 1200 rpm clockwise viewed from the left end. The input torque is 30 Nm and the efficiency is 70%. Calculate the following:
a) The output speed and its direction
b) The output power
c) The fixing torque
Gear A has 50 teeth
Gear B has 150 teeth
Gear C has 30 teeth
Gear D has 60 teeth
PROBLEM 7 Gear A is the input and revolves at 1 2

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
