Question: Problem 8 A concrete gravity retaining wall having a unit weight of 1 5 0 p c f is shown in the figure. Use the

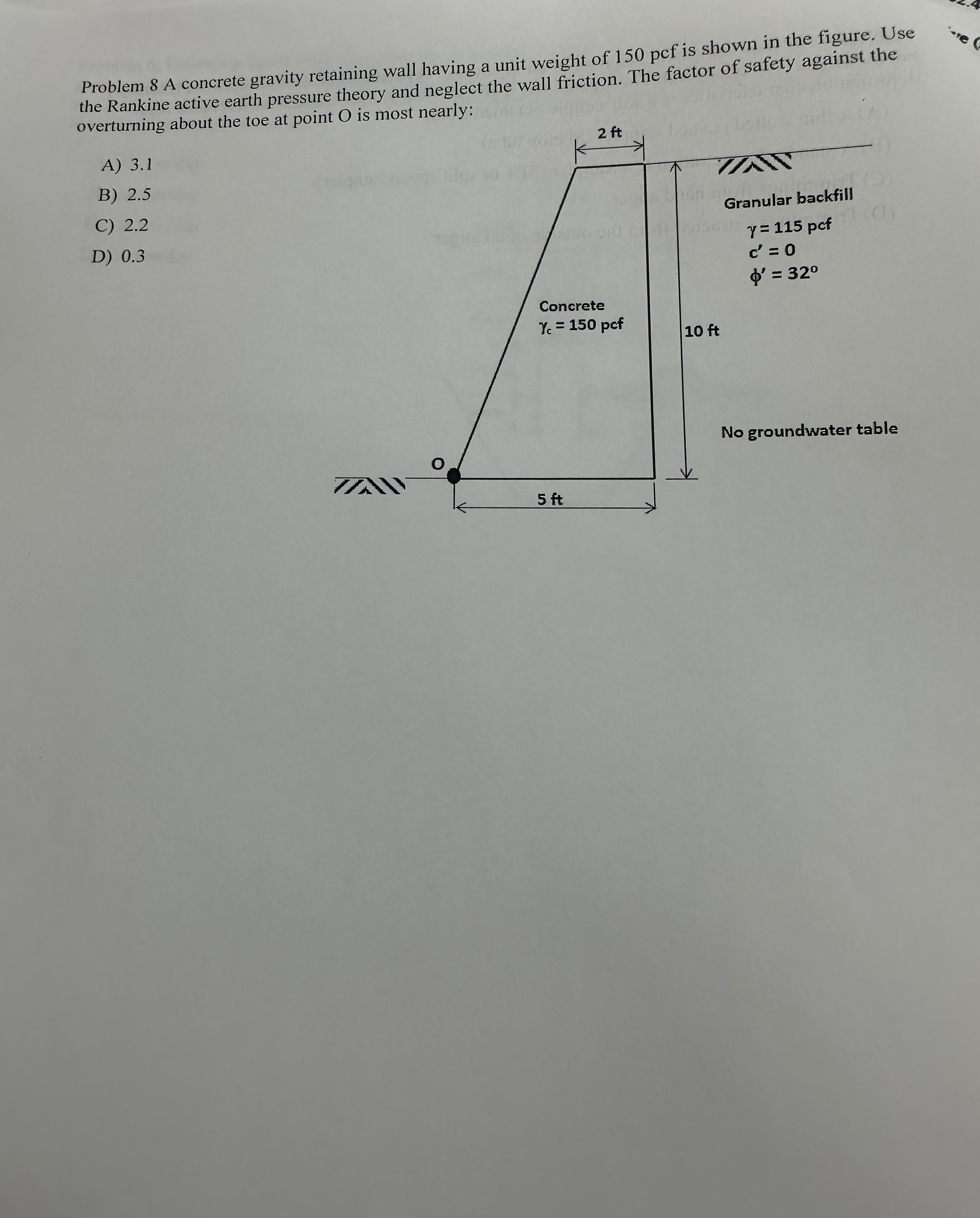

Problem 8 A concrete gravity retaining wall having a unit weight of 150pcf is shown in the figure. Use the Rankine active earth pressure theory and neglect the wall friction. The factor of safety against the overturning about the toe at pointO ic most nearly:
A)3.1
B)2.5
C)2.2
D)0.3
Problem 8 A concrete gravity retaining wall
