Question: Q 4 ) Using virtual work method, find the smallest moment of inertia I required for the beam shown so that the maximum deflection does

4)

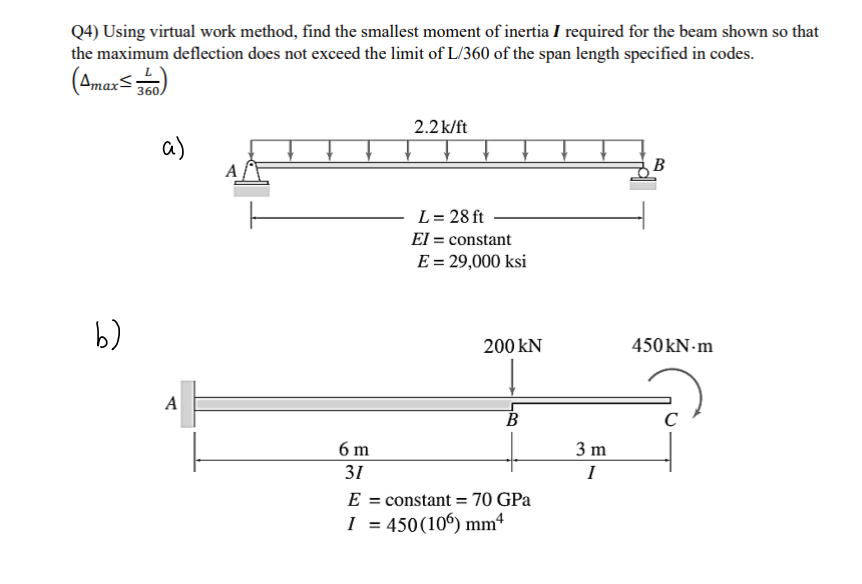

Using virtual work method, find the smallest moment of inertia I required for the beam shown so that the maximum deflection does not exceed the limit of

\frac{L}{360}

of the span length specified in codes. Please do part B

)

Q 4 ) Using virtual work method, find the

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
