Question: Problem 9 A plate cam with a zero offset to a knife- edged follower is to be designed using the input, the rise and

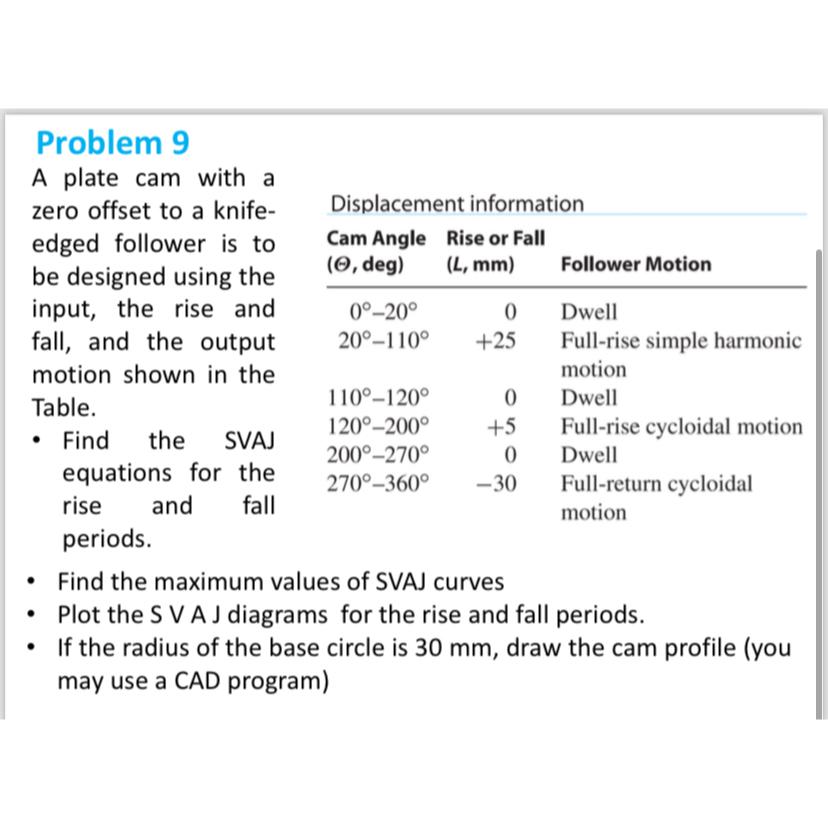

Problem 9 A plate cam with a zero offset to a knife- edged follower is to be designed using the input, the rise and Displacement information Cam Angle Rise or Fall (0, deg) Follower Motion (L, mm) 0-20 0 Dwell fall, and the output 20-110 +25 Full-rise simple harmonic motion shown in the motion 1100-120 0 Dwell Table. 120-200 Find the SVAJ +5 Full-rise cycloidal motion 200-270 0 Dwell equations for the 270-360 -30 Full-return cycloidal rise and fall motion periods. Find the maximum values of SVAJ curves Plot the SV AJ diagrams for the rise and fall periods. If the radius of the base circle is 30 mm, draw the cam profile (you may use a CAD program)

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
