Question: Problem B ( 5 0 points ) Determine reactions at ( A ) and ( H ) , and the forces

Problem B (50 points)

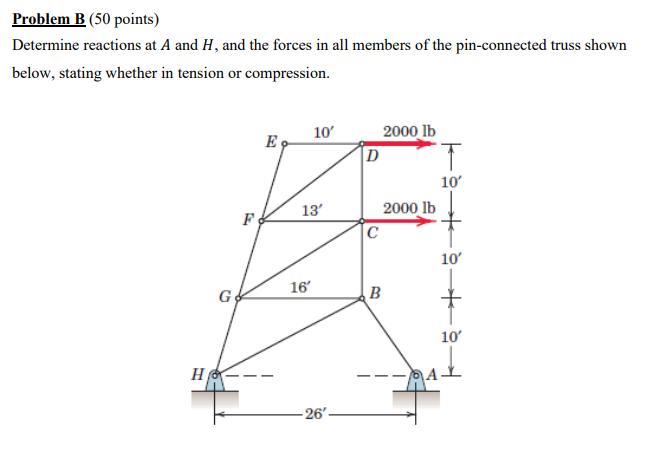

Determine reactions at \( A \) and \( H \), and the forces in all members of the pin-connected truss shown below, stating whether in tension or compression.
Problem B ( 5 0 points ) Determine reactions at \

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
