Question: Problem III ( 2 0 % ) . Bode's gain - phase relationship states that for any stable minimum - phase transfer function G (

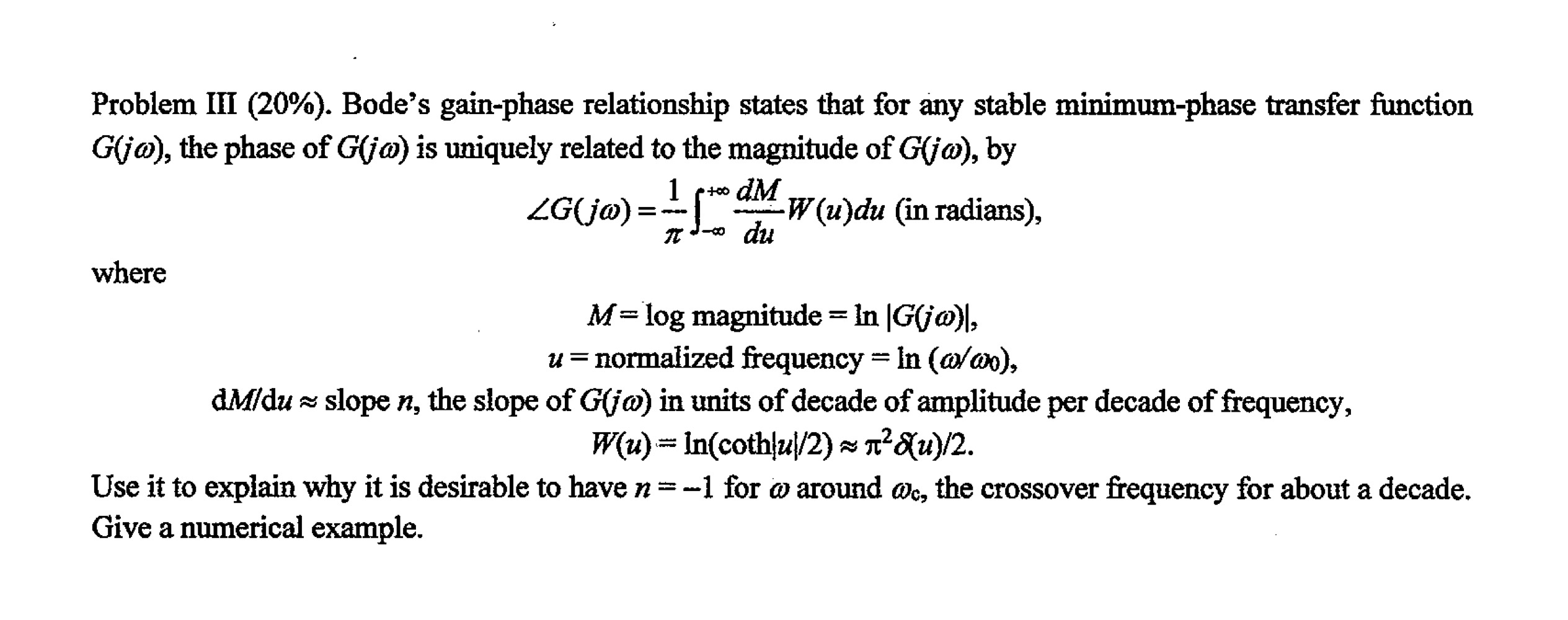

Problem III (20%). Bode's gain-phase relationship states that for any stable minimum-phase transfer function G(j), the phase of G(j) is uniquely related to the magnitude of G(j), by
??G(j)=1-+dMduW(u)du(in radians),
where
M=log magnitude =ln|G(j)|,
u= normalized frequency =ln(0)
dMdu~~ slope n, the slope of G(j) in units of decade of amplitude per decade of frequency,
(|)/(2|)
Use it to explain why it is desirable to have n=-1 for around c, the crossover frequency for about a decade. Give a numerical example.
