Question: Problem No . 2 For the frame shown below, determine the amplitude and the direction of the vertical deflection in millimeters at point B .

Problem No.2

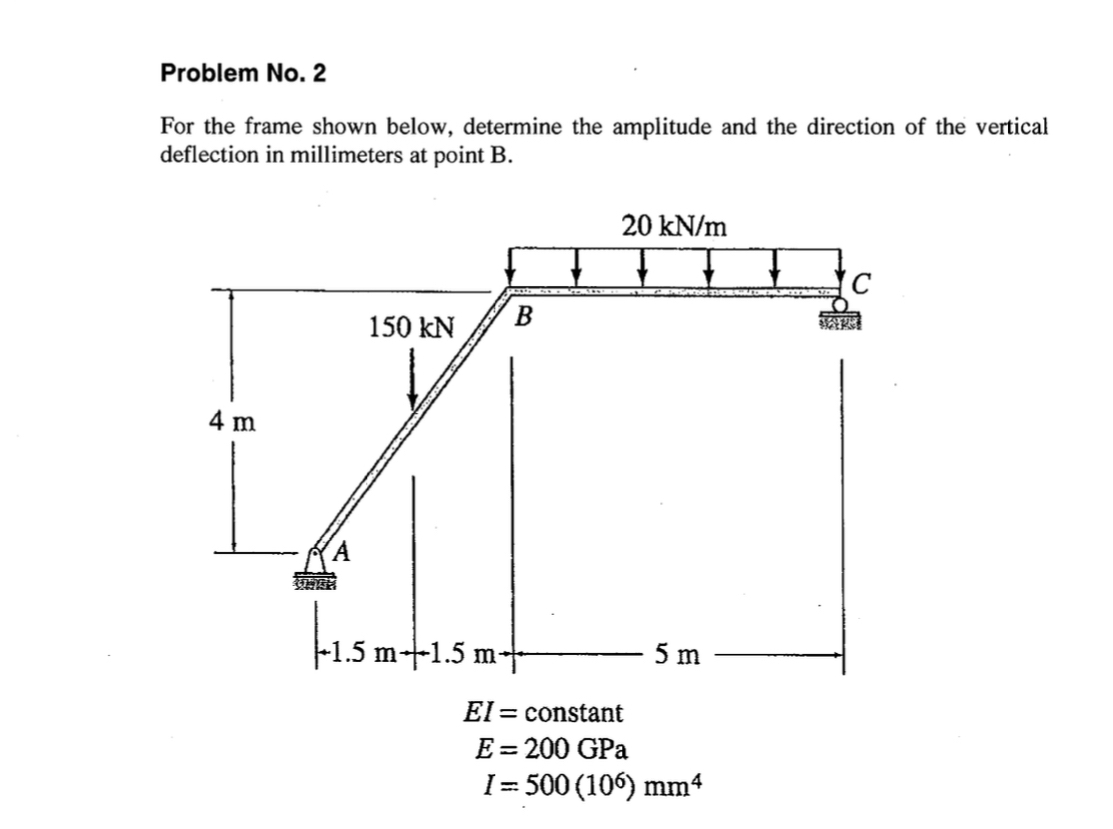

For the frame shown below, determine the amplitude and the direction of the vertical
deflection in millimeters at point B.
EI= constant
E=200GPa
I=500(106)mm4
Answer the problem with a clear written answer
