Question: Problem: Our task will be to design a VHDL component that provides basic stop watch functionality. Your design should start at zero and be able

 Problem: Our task will be to design a VHDL component that

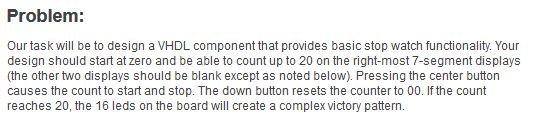

Problem: Our task will be to design a VHDL component that provides basic stop watch functionality. Your design should start at zero and be able to count up to 20 on the right-most 7-segment displays (the other two displays should be blank except as noted below). Pressing the center button causes the count to start and stop. The down button resets the counter to 00. If the count reaches 20, the 16 leds on the board will create a complex victory pattern
