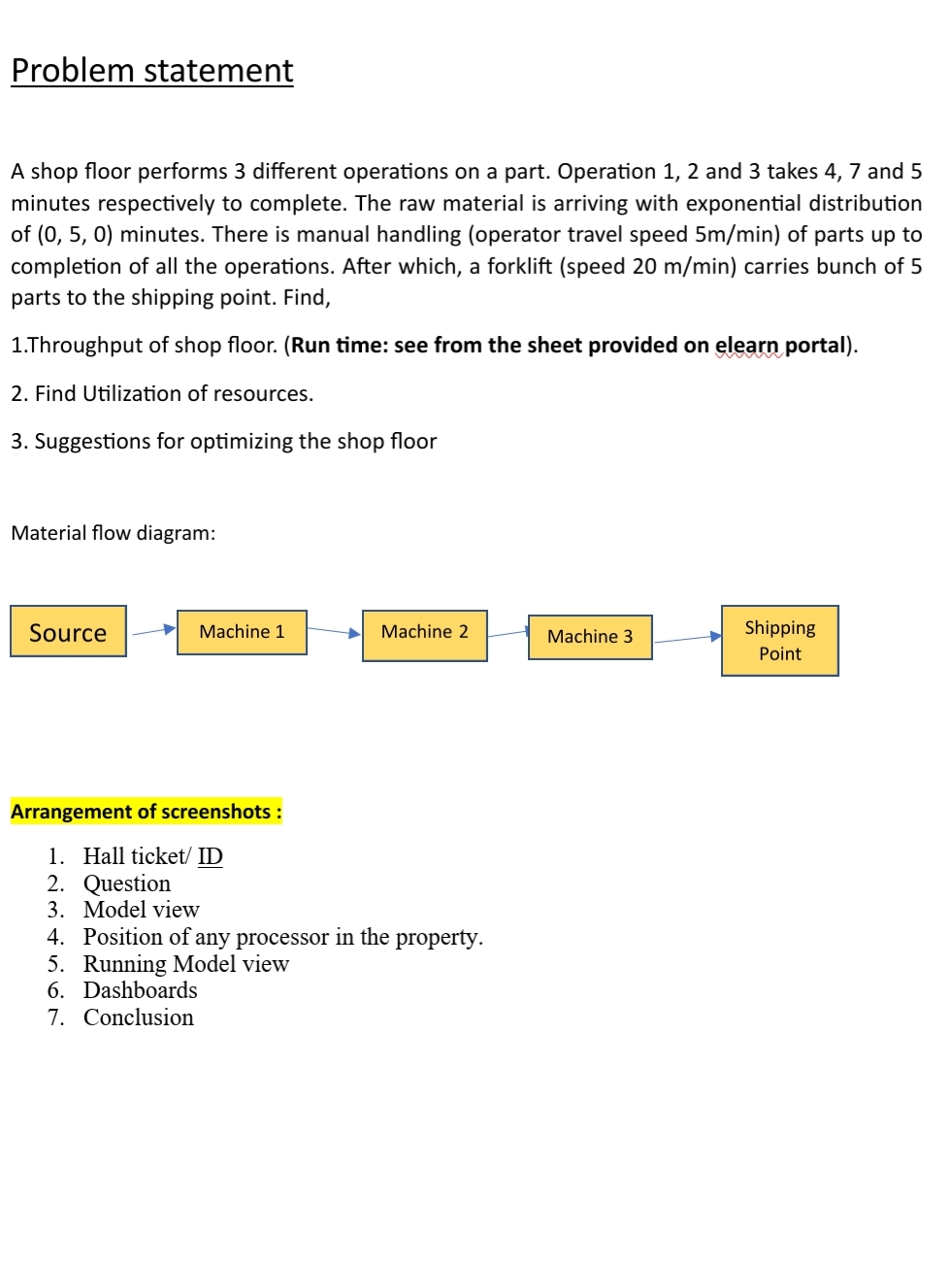

Problem statement

A shop floor performs $3$ different operations on a part. Operation $1,2$ and $3$ takes $4,7$ and $5$ minutes respectively to complete. The raw material is arriving with exponential distribution of $(0,5,0)$ minutes. There is manual handling $($operator travel speed $5\frac{m}{m}in$ of parts up to completion of all the operations. After which, a forklift $($speed $20\frac{m}{m}in)$ carries bunch of $5$ parts to the shipping point. Find,

$1.$Throughput of shop floor. $($Run time: see from the sheet provided on elearn portal$).$

$2.$ Find Utilization of resources.

$3.$ Suggestions for optimizing the shop floor

Material flow diagram:

Arrangement of screenshots:

Hall ticket$/()$

Question

Model view

Position of any processor in the property.

Running Model view

Dashboards

Conclusion

I need image uding flexsim application
