Question: Problem Statement For this assignment, you are to develop a logical database design (relational schema) from a conceptual data model (a simple restaurant data model)

Problem Statement For this assignment, you are to develop a logical database design (relational schema) from a conceptual data model (a simple restaurant data model) that is given on the last page. Your relations should be normalized to the third Normal form. A relational schema for a simple restaurant system. Use arrows to show referential integrity constraints. You do not have to show the functional dependencies among the attributes within a relation (table). Use a computer-based graphic tool to draw your relational schema (i.e., LucidChart.com, Creatly.com. gliffy.com, VISIO, etc.).

Problem Statement For this assignment, you are to

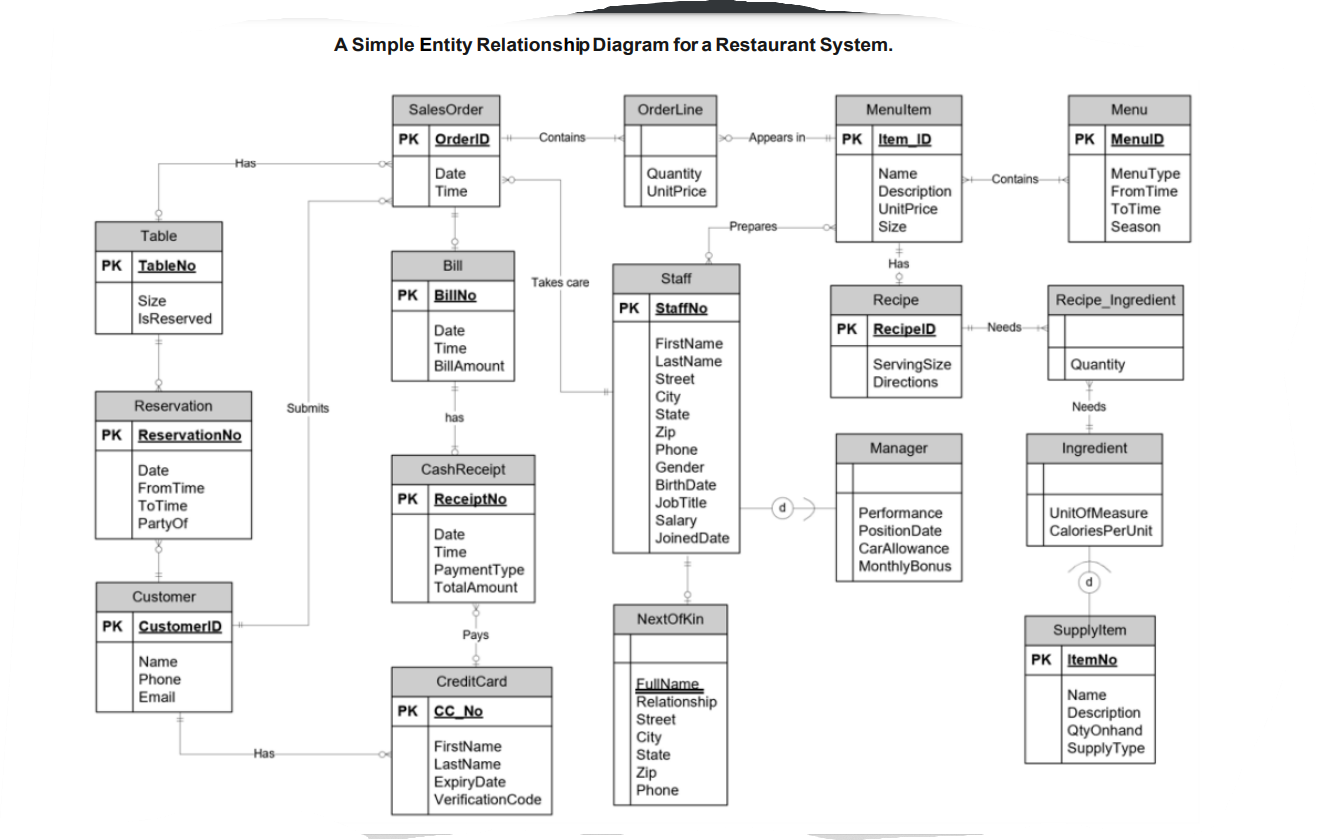

A Simple Entity Relationship Diagram for a Restaurant System

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
