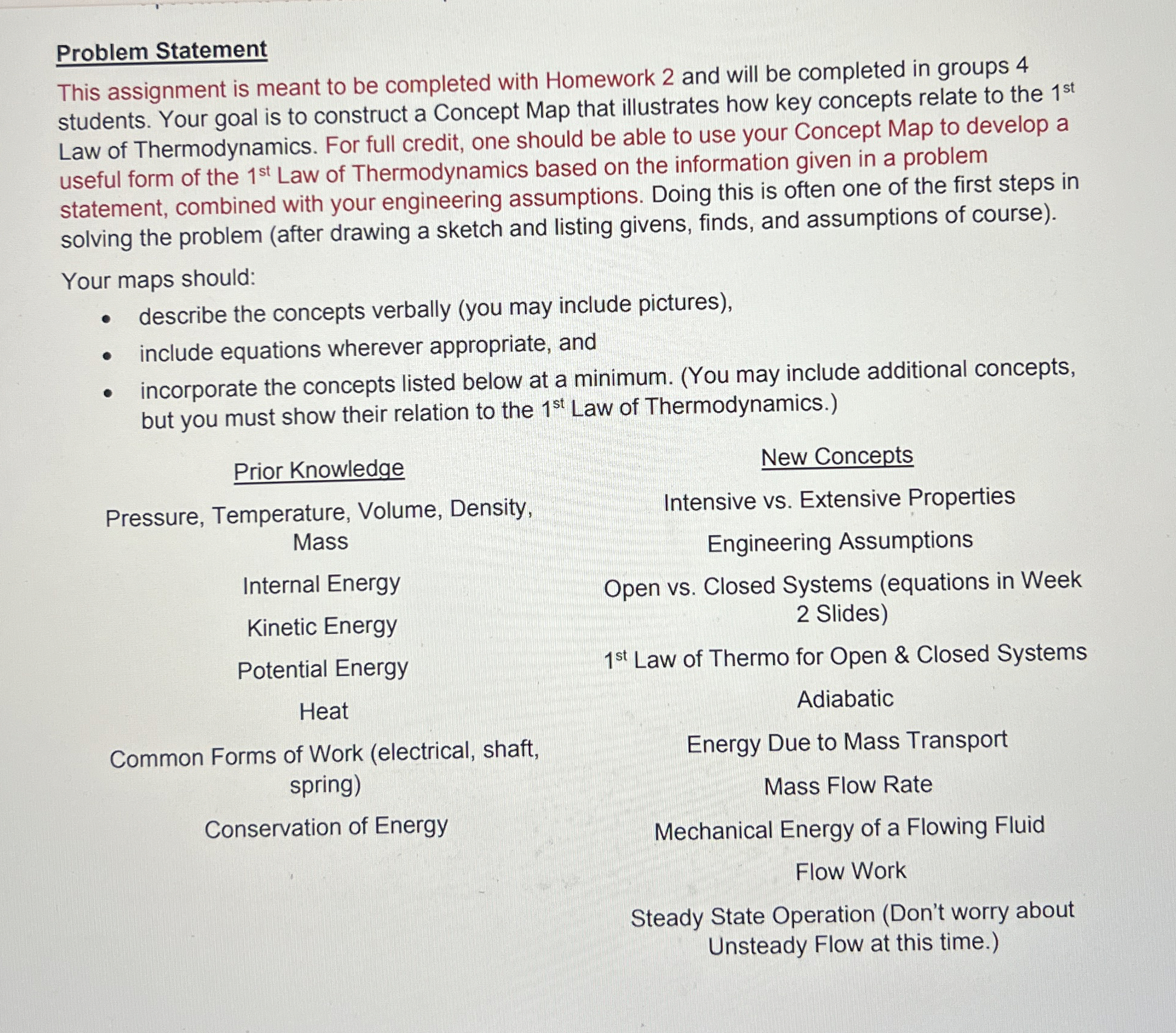

Problem Statement

This assignment is meant to be completed with Homework $2$ and will be completed in groups $4$ students. Your goal is to construct a Concept Map that illustrates how key concepts relate to the $1^{st}$ Law of Thermodynamics. For full credit, one should be able to use your Concept Map to develop a useful form of the $1^{st}$ Law of Thermodynamics based on the information given in a problem statement, combined with your engineering assumptions. Doing this is often one of the first steps in solving the problem $($after drawing a sketch and listing givens, finds, and assumptions of course$).$

Your maps should:

describe the concepts verbally $($you may include pictures$),$

include equations wherever appropriate, and

incorporate the concepts listed below at a minimum. $($You may include additional concepts, but you must show their relation to the $1^{st}$ Law of Thermodynamics.$)$

Prior Knowledge

Pressure, Temperature, Volume, Density,

Mass

Internal Energy

Kinetic Energy

Potential Energy

Heat

Common Forms of Work $($electrical$,$ shaft, spring$)$

Conservation of Energy

New Concepts

Intensive vs$.$ Extensive Properties

Engineering Assumptions

Open vs$.$ Closed Systems $($equations in Week $2$ Slides$)$

$1^{st}$ Law of Thermo for Open & Closed Systems

Adiabatic

Energy Due to Mass Transport

Mass Flow Rate

Mechanical Energy of a Flowing Fluid

Flow Work

Steady State Operation $($Don$\text{'}$t worry about Unsteady Flow at this time.$)$
