Question: Problem Two The BarlPullcyx'cable assembly has a downward force Fc =1000 N applied at point C. In addition, a couple-moment M = 900 Nm is

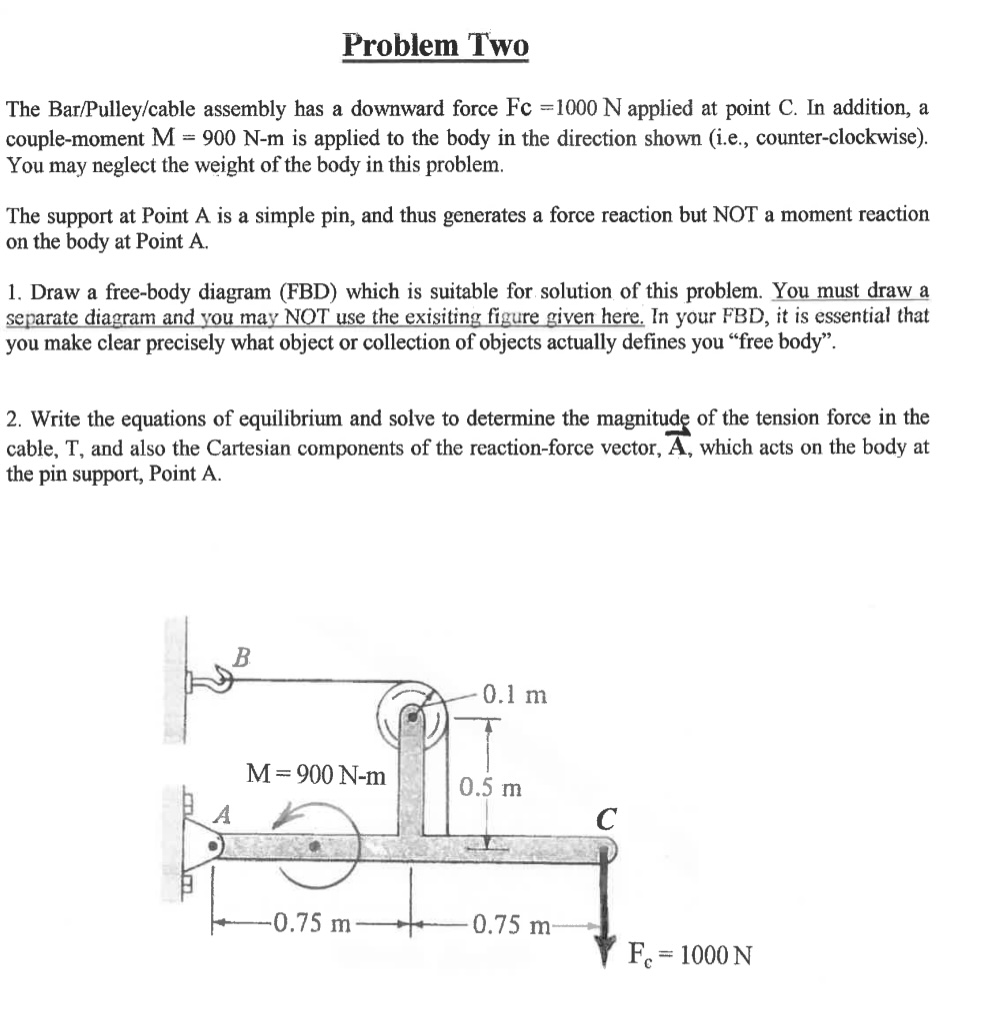

Problem Two The BarlPullcyx'cable assembly has a downward force Fc =1000 N applied at point C. In addition, a couple-moment M = 900 Nm is applied to the body in the direction shown (i.e., counter-clockwise). You may neglect the weight of the body in this problem. The support at Point A is a simple pin, and thus generates a force reaction but NOT a moment reaction on the body at Point A. 1. Draw a free-body diagram (FED) which is suitable for solution of this problem. Eggnmust draw a separate diagram and you may NQT use the exigiting gum given here. in your FBD, it is essential that you make clear precisely what object or collection of objects actually denes you \"free body". 2. Write the equations of equilibrium and solve to determine the mgnitud of the tension force in the cable. T. and also the Cartesian components of the reaction-force vector, , which acts on the body at the pin support, Point A

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
