Question: Problem_#01] For the two bit comparator shown below, determine the output waveform for the A=B pin, given the input shown. COMP Ao 0 A Ao

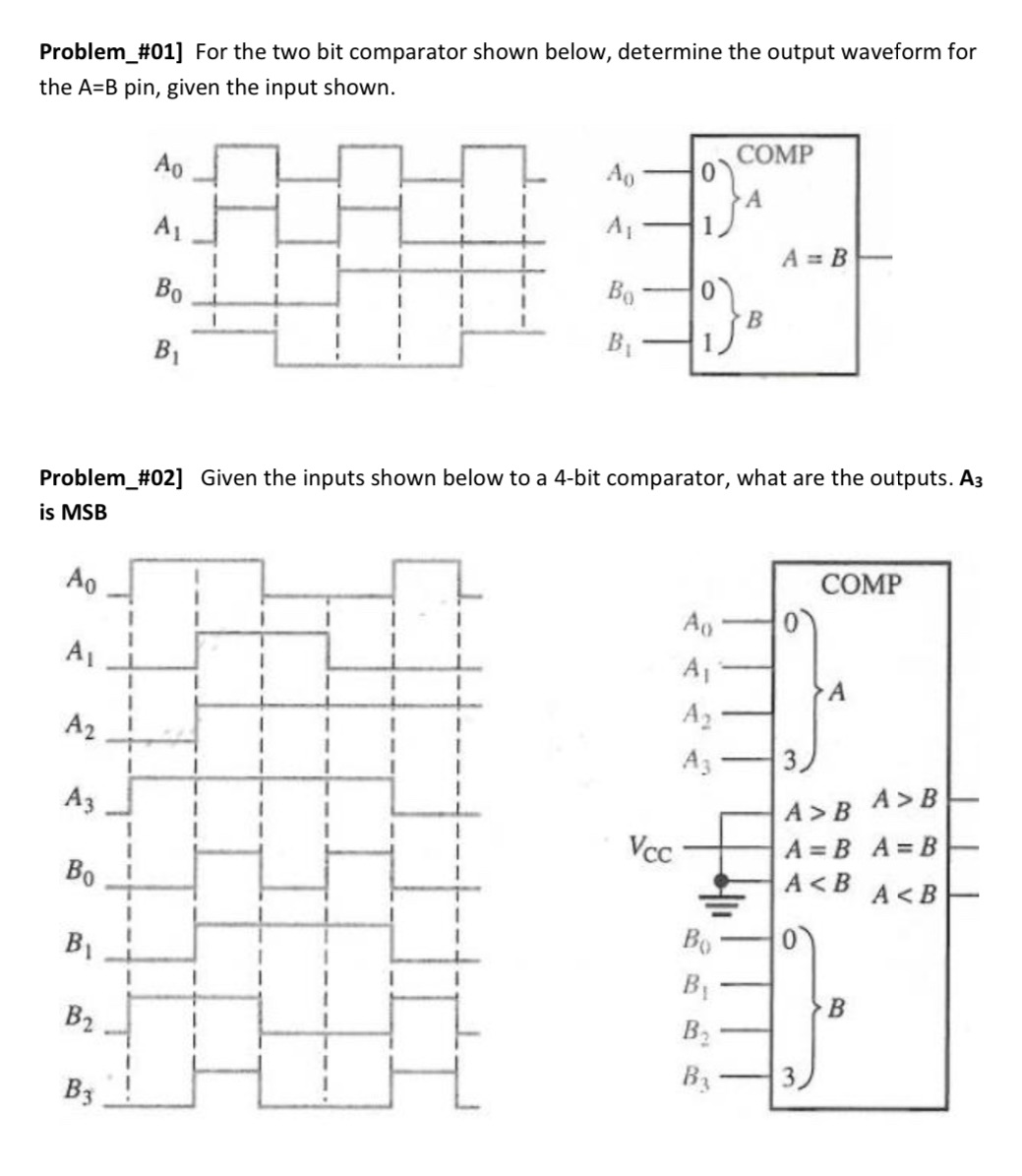

Problem_#01] For the two bit comparator shown below, determine the output waveform for the A=B pin, given the input shown. COMP Ao 0 A Ao A =B A Bo 0 Bo B B1 Problem_#02] Given the inputs shown below to a 4-bit comparator, what are the outputs. A3 COMP is MSB Ao 0 Ao A A A3 3 A2 A>BA>B A =B A=B A3 Vcc A
