Question: Problems 1 8 - 2 0 correspond to the same circuit. Given a sequential circuit described by J A = x K A = B

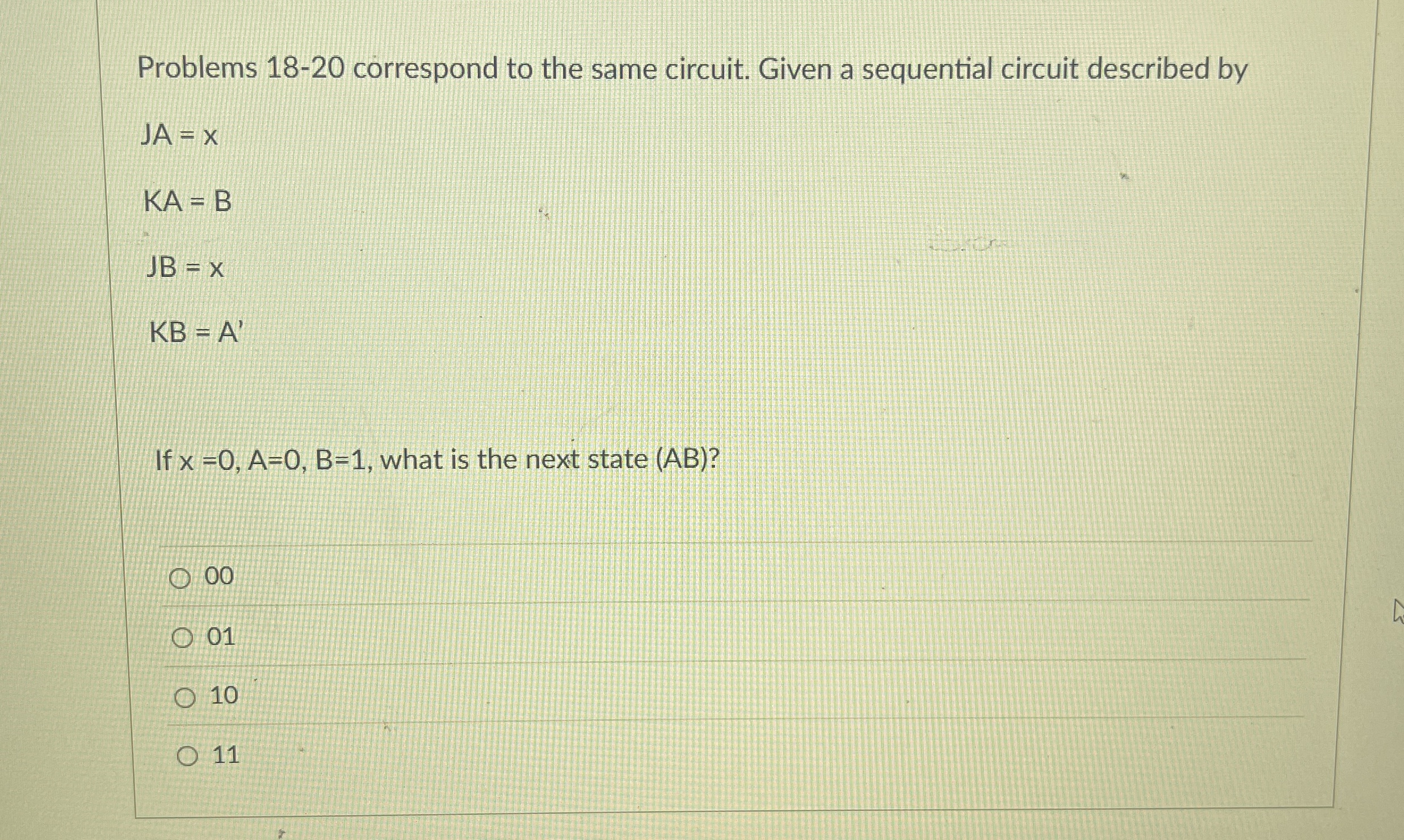

Problems 18-20 correspond to the same circuit. Given a sequential circuit described by
JA=x
KA=B
JB=x
KB=A'
If x=0,A=0,B=1, what is the next state (AB)?
00
01
10
11
Problems 1 8 - 2 0 correspond to the same
