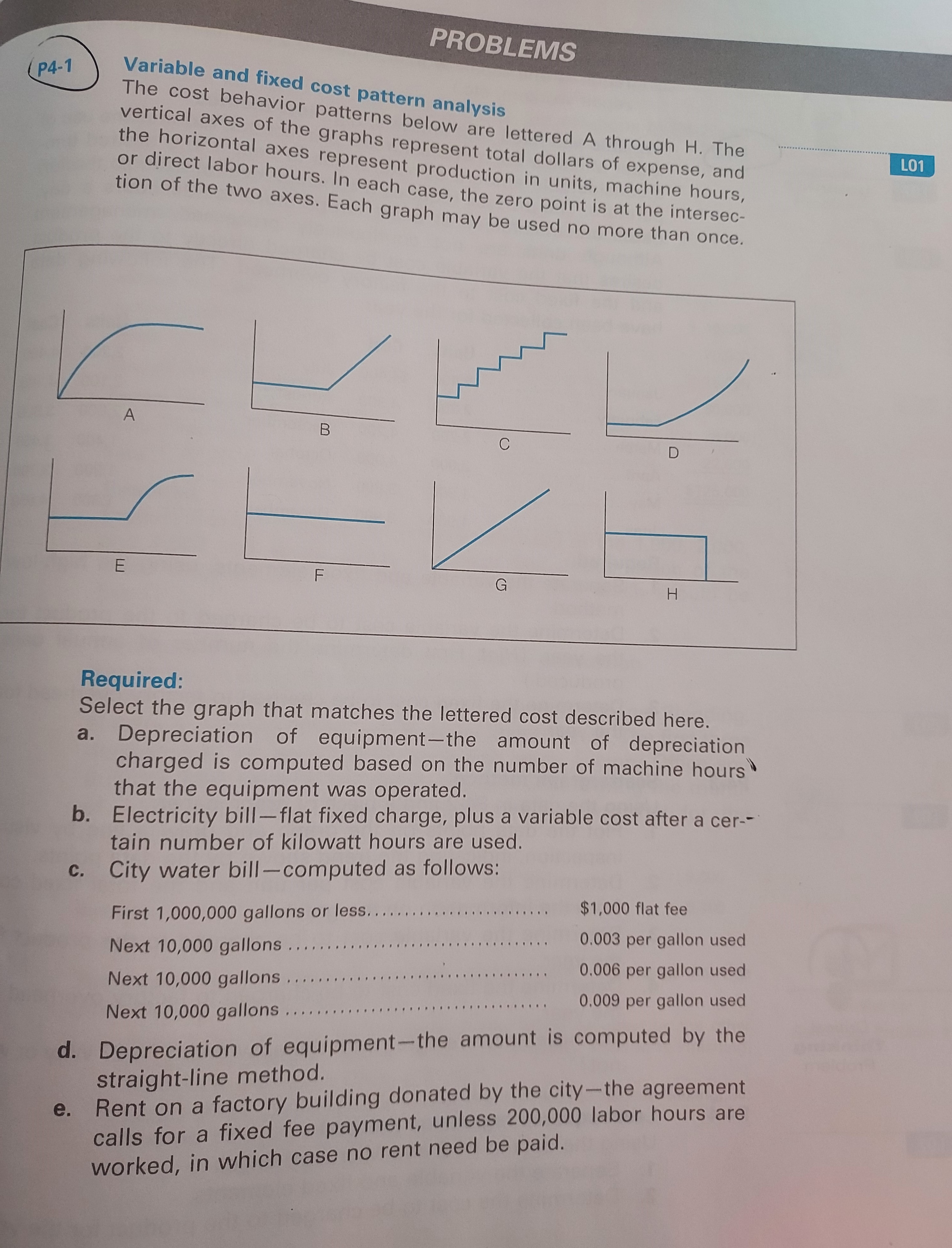

PROBLEMS P4-1 Variable and fixed cost pattern analysis The cost behavior patterns below are lettered A through H. The vertical axes of the graphs represent total dollars of expense, and the horizontal axes represent production in units, machine hours, L01 or direct labor hours. In each case, the zero point is at the intersec- tion of the two axes. Each graph may be used no more than once. B C D F G H Required: Select the graph that matches the lettered cost described here. a. Depreciation of equipment-the amount of depreciation charged is computed based on the number of machine hours that the equipment was operated. b. Electricity bill-flat fixed charge, plus a variable cost after a cer-- tain number of kilowatt hours are used. c. City water bill-computed as follows: First 1,000,000 gallons or less. ....... . .. . ............ $1,000 flat fee Next 10,000 gallons .... 0.003 per gallon used Next 10,000 gallons . ..... .. ..". . ............ 0.006 per gallon used 0.009 per gallon used Next 10,000 gallons . ... . d. Depreciation of equipment-the amount is computed by the straight-line method. e. Rent on a factory building donated by the city-the agreement calls for a fixed fee payment, unless 200,000 labor hours are worked, in which case no rent need be paid
