Question: PROBLEMS The structure is designed to support a 3 0 k N load The structure consists of a boom and rod joined by pins (

PROBLEMS

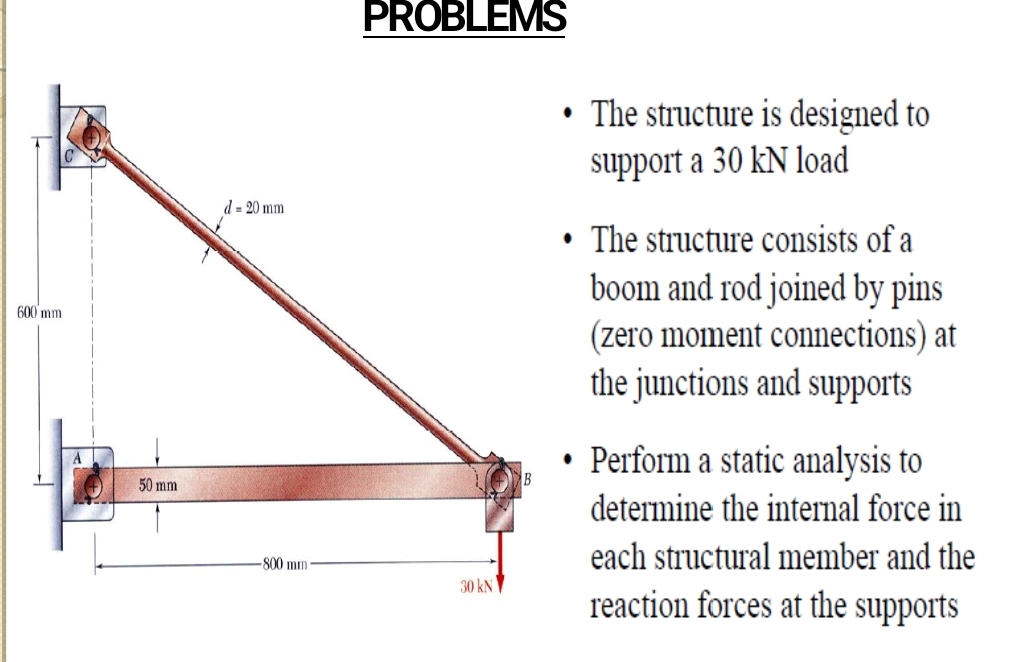

The structure is designed to support a 30kN load
The structure consists of a boom and rod joined by pins (zero moment connections) at the junctions and supports
Perform a static analysis to determine the internal force in each structural member and the reaction forces at the supports
