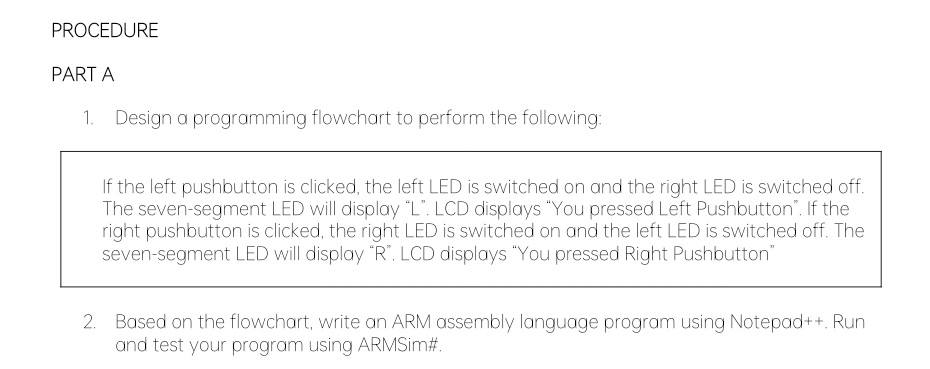

PROCEDURE

PART A

Design a programming flowchart to perform the following:

If the left pushbutton is clicked, the left LED is switched on and the right LED is switched off. The seven$-$segment LED will display $"$L$".$ LCD displays "You pressed Left Pushbutton". If the right pushbutton is clicked, the right LED is switched on and the left LED is switched off. The seven$-$segment LED will display $"$R$".$ LCD displays "You pressed Right Pushbutton"

Based on the flowchart, write an ARM assembly language program using Notepad$++.$ Run and test your program using ARMSim#$.$
