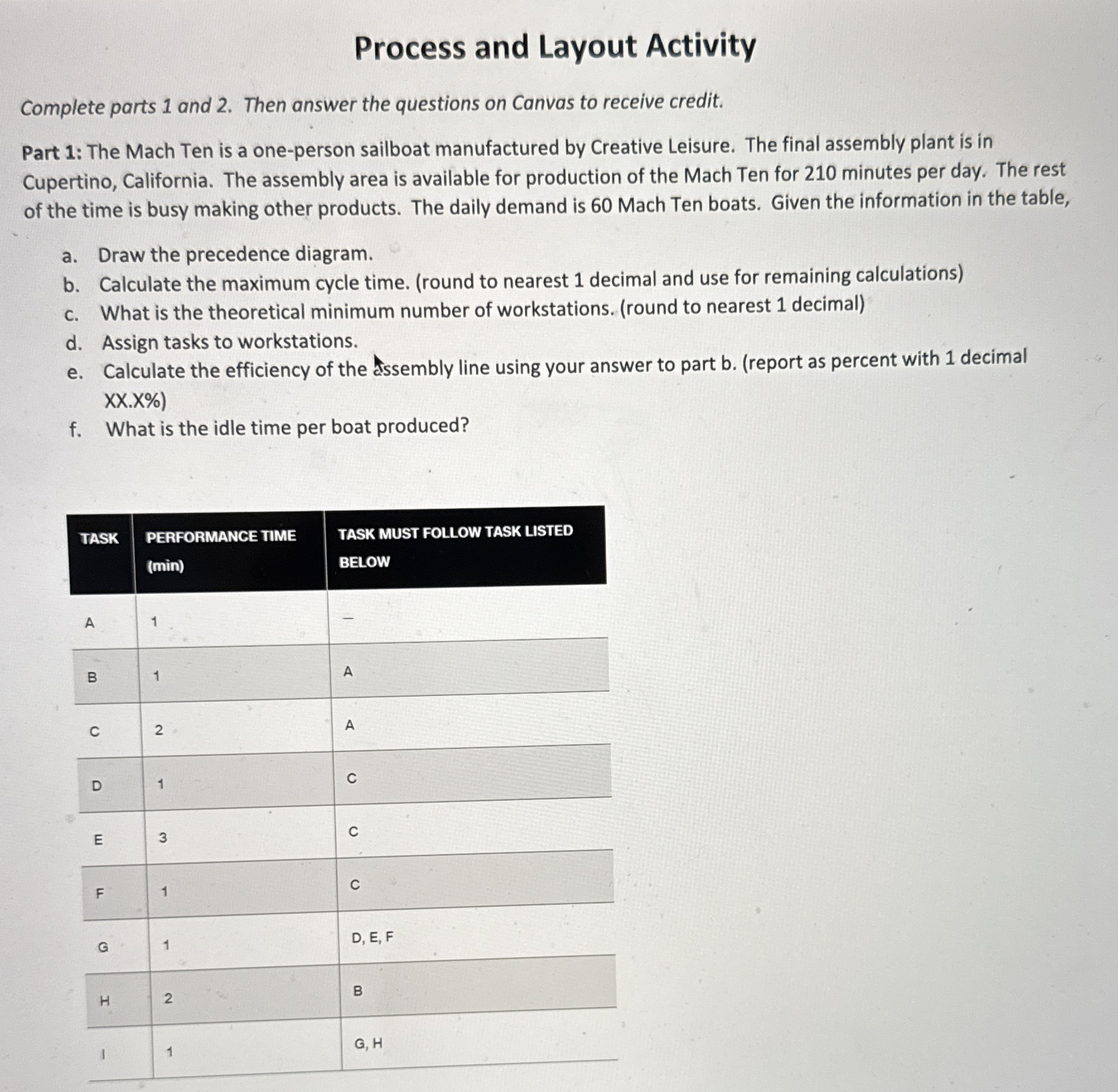

Process and Layout Activity

Complete parts $1$ and $2.$ Then answer the questions on Canvas to receive credit.

Part $1$: The Mach Ten is a one$-$person sailboat manufactured by Creative Leisure. The final assembly plant is in

Cupertino, California. The assembly area is available for production of the Mach Ten for $210$ minutes per day. The rest

of the time is busy making other products. The daily demand is $60$ Mach Ten boats. Given the information in the table,

a$.$ Draw the precedence diagram.

b$.$ Calculate the maximum cycle time. $($round to nearest $1$ decimal and use for remaining calculations$)$

c$.$ What is the theoretical minimum number of workstations. $($round to nearest $1$ decimal$)$

d$.$ Assign tasks to workstations.

e$.$ Calculate the efficiency of the assembly line using your answer to part b$.($report as percent with $1$ decimal

XX$.$X$\%)$

f$.$ What is the idle time per boat produced?
