Process:

Seq. Operation description

$1$ Rough face & num $($leave $0005$ on faces and $0\mathrm{.}06$ on diameters$)$

$5$ Finish face and turn

Tool

$80$ degree diamond

$55$ degree diamond

Station Speed

Feedrate $0\mathrm{.}012$ ipr

$1500$ sfm

$5$

$600$ sfm

$0\mathrm{.}007$ ipr

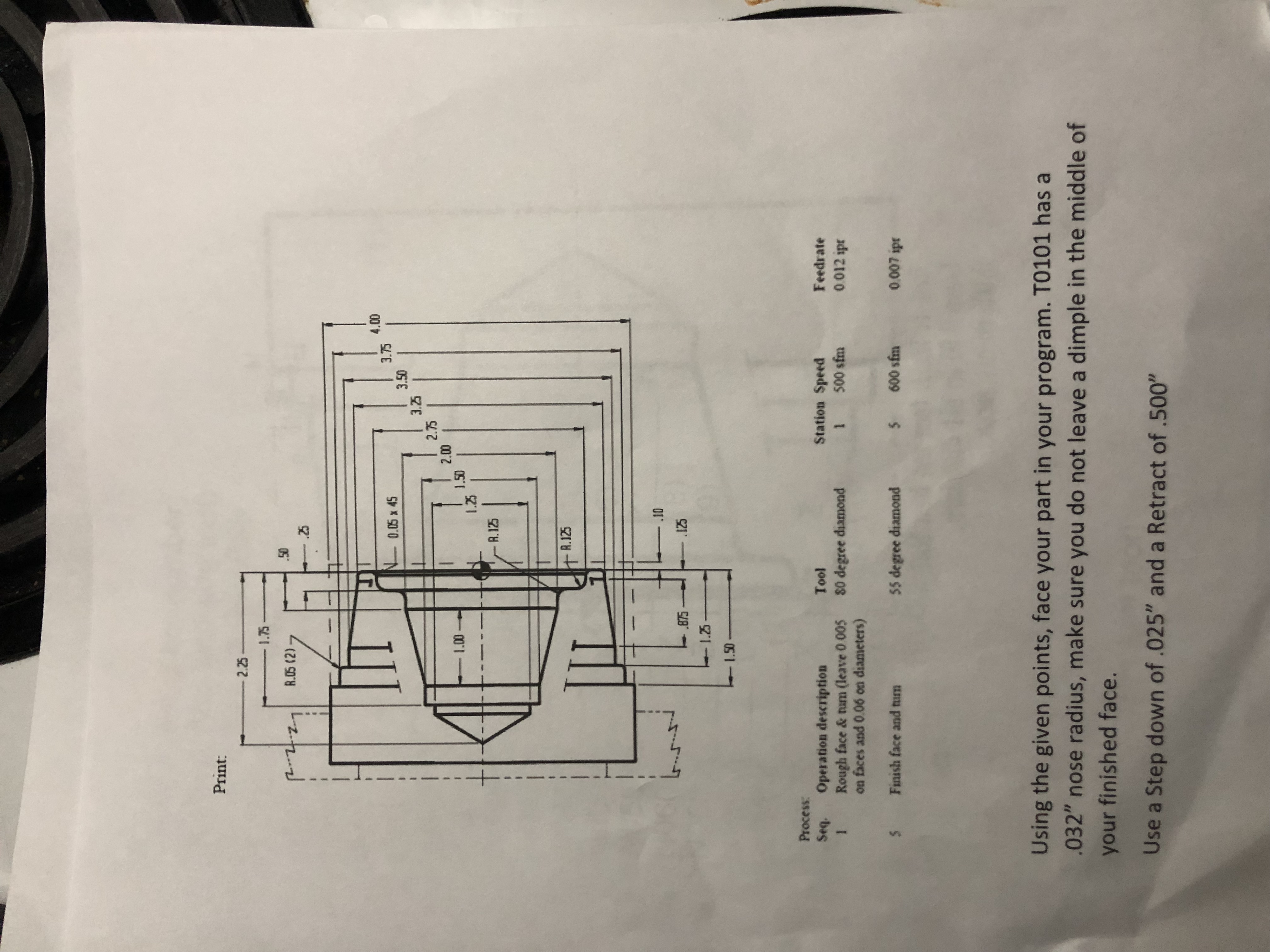

Using the given points, face your part in your program. T$0101$ has a $\mathrm{.}032"$ nose radius, make sure you do not leave a dimple in the middle of your finished face.

Use a Step down of $\mathrm{.}025^(\text{'}\text{'})$ and a Retract of $\mathrm{.}500^(\text{'}\text{'})$

$00009($Program number$)$

$($Rough face and turn tool$)$

N$005$ G$20$ G$23$ G$40$ G$99$

N$010$ G$50$ S$4000$

N$015$ T$0101$ M$41$

N$018$ G S$500$ M$03$

N$020$ G $\backslash ($ x $\backslash$quad Z $\backslash )$

N$025$ G X F$0\mathrm{.}012(2)$

N$030$ G$\_$ Z $(3)$

N$035$ X $(4)$

$(1)$

$($Finish face and turn tool$)$
