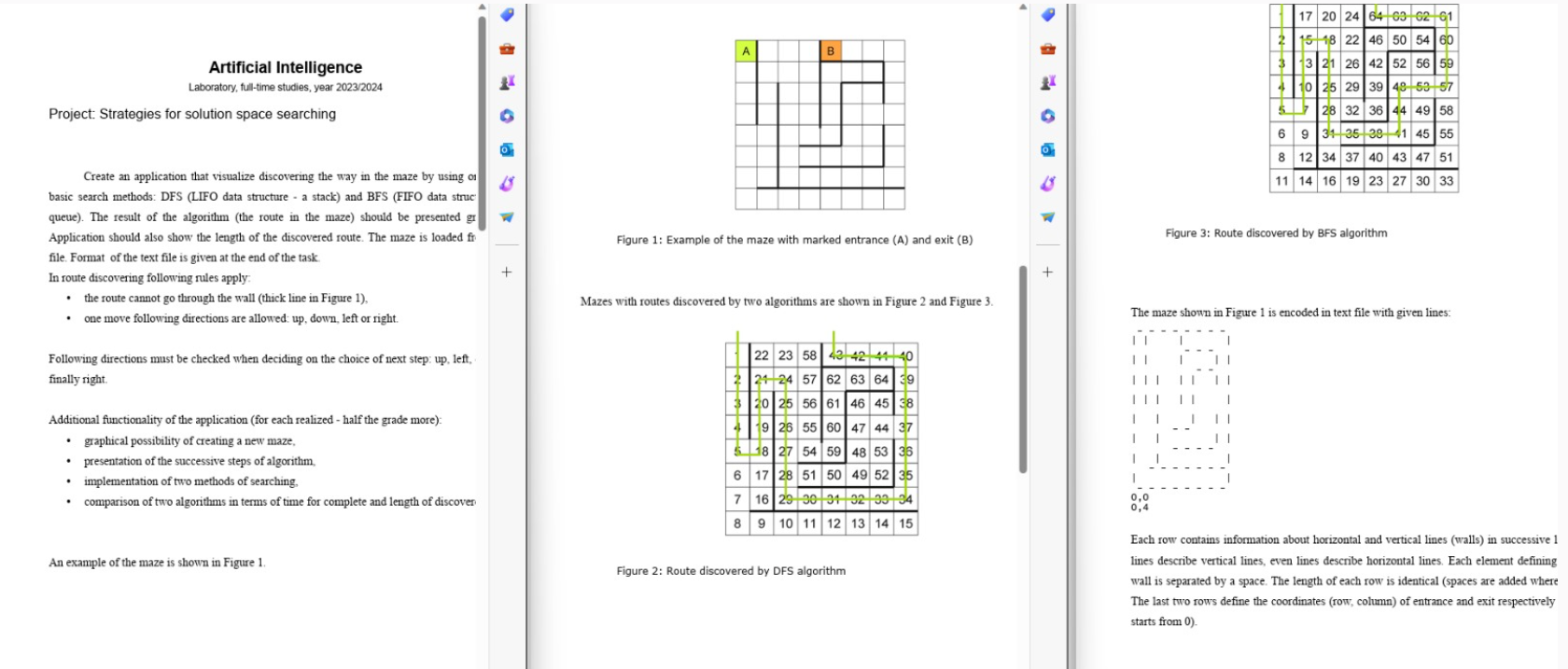

Project: Strategies for solution space searching in JAVA

Create an application that visualize discovering the way in the maze by using one of two

basic search methods: DFS $($LIFO data structure $-$ a stack$)$ and BFS $($FIFO data structure $-$ the

queue$).$ The result of the algorithm $($the route in the maze$)$ should be presented graphically.

Application should also show the length of the discovered route. The maze is loaded from a text

file. Format of the text file is given at the end of the task.

In route discovering following rules apply:

$$ the route cannot go through the wall $($thick line in Figure $1),$

$$ one move following directions are allowed: up$,$ down, left or right.

Following directions must be checked when deciding on the choice of next step: up$,$ left, down and

finally right.

Additional functionality of the application $($for each realized $-$ half the grade more$)$:

$$ graphical possibility of creating a new maze,

$$ presentation of the successive steps of algorithm,

$$ implementation of two methods of searching,

$$ comparison of two algorithms in terms of time for complete and length of discovered routes.Figure $3$: Route discovered by BFS algorithm

The maze shown in Figure $1$ is encoded in text file with given lines:

Each row contains information about horizontal and vertical lines $($walls$)$ in successive $1$

lines describe vertical lines, even lines describe horizontal lines. Each element defining

wall is separated by a space. The length of each row is identical $($spaces are added where

The last two rows define the coordinates $($row$,$ column$)$ of entrance and exit respectively

starts from $0)$
