Question: Properly phase, label, and connect ( showing phasor diagrams supporting your work ) the 2 three - phase transformer banks so they can be operated

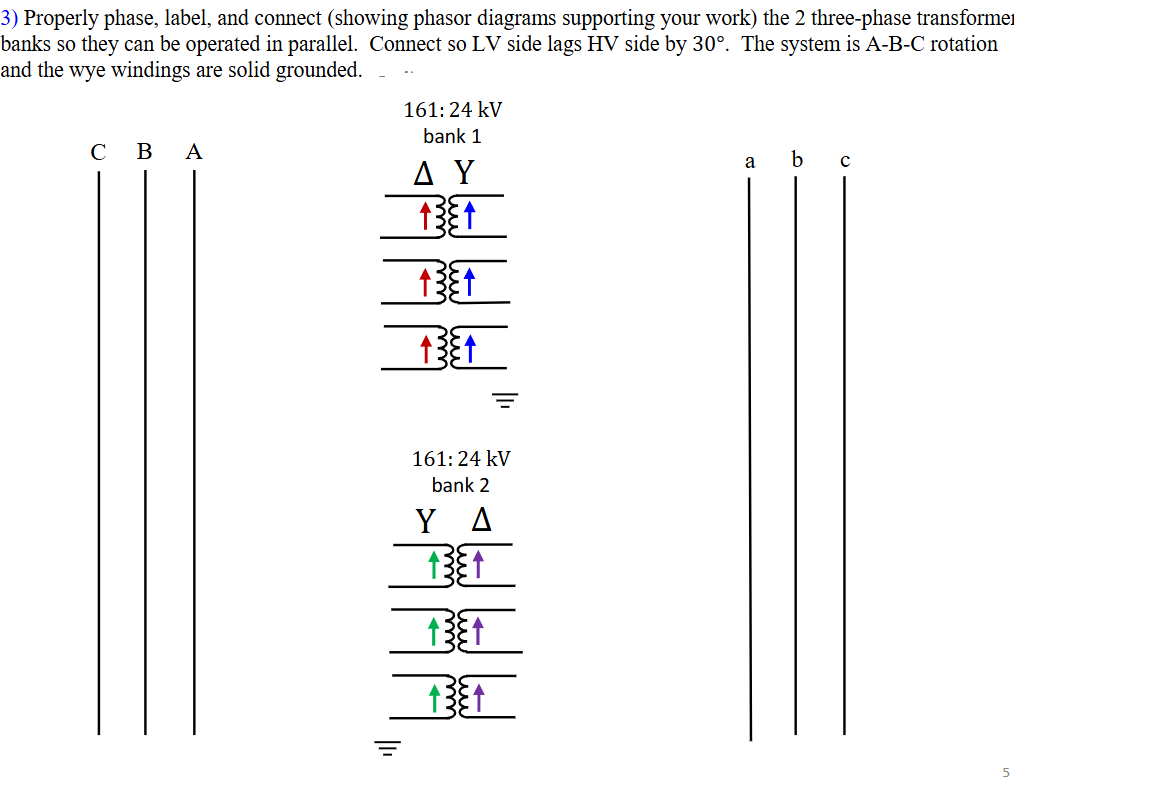

Properly phase, label, and connect (showing phasor diagrams supporting your work) the 2 three-phase transformer banks so they can be operated in parallel. Connect so the LV side lags HV side by 30 degrees. The system is A-B-C rotation and the wye windings are solid grounded.
Properly phase, label, and connect ( showing

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
