Question: Python Lab5.3. Shear and Momemnt Diagrams in Python Pyt Below we have a beam that is pin supported at one end and roller supported at

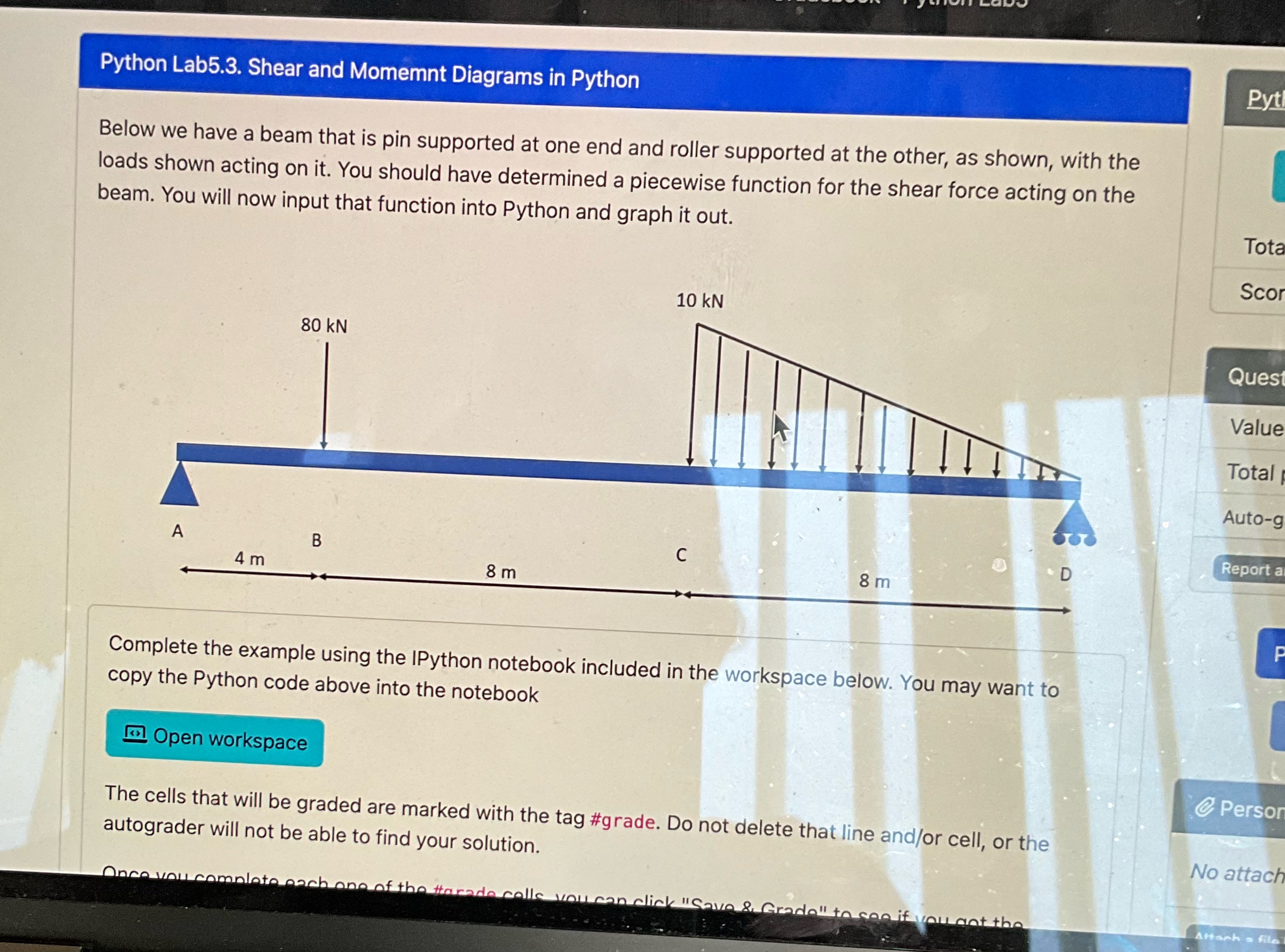

Python Lab5.3. Shear and Momemnt Diagrams in Python Pyt Below we have a beam that is pin supported at one end and roller supported at the other, as shown, with the loads shown acting on it. You should have determined a piecewise function for the shear force acting on the beam. You will now input that function into Python and graph it out. Tot Sco 10 KN 80 kN Quest Value Total Auto-g A B C D Report a 4 m 8 m 8 m Complete the example using the IPython notebook included in the workspace below. You may want to copy the Python code above into the notebook 21 Open workspace & Person The cells that will be graded are marked with the tag #grade. Do not delete that line and/or cell, or the autograder will not be able to find your solution. No attach Once you complete do colle you can click " Save &. Grade" to con if you ant the h a file

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
