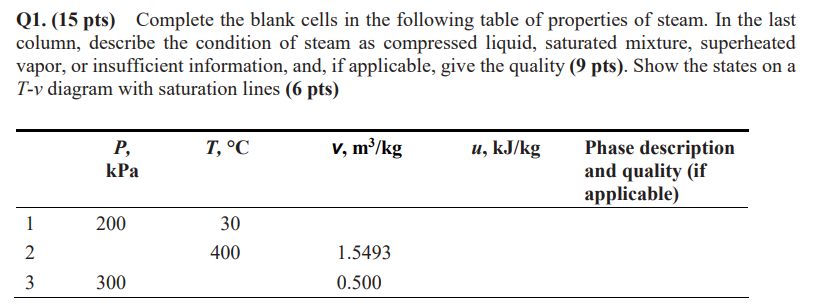

Question: Q 1 . ( 1 5 p t s ) Complete the blank cells in the following table of properties of steam. In the last

Q1.(15pts) Complete the blank cells in the following table of properties of steam. In the last
column, describe the condition of steam as compressed liquid, saturated mixture, superheated
vapor, or insufficient information, and, if applicable, give the quality (9pts). Show the states on a
T-v diagram with saturation lines (6pts)
Q 1 . ( 1 5 p t s ) Complete the blank cells in

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
