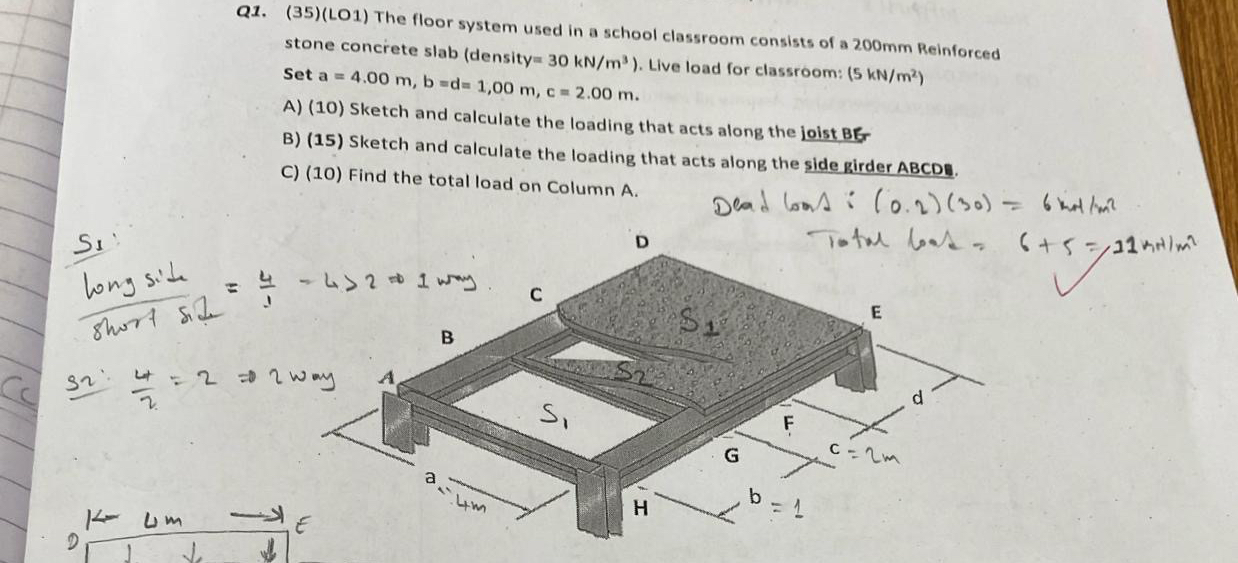

Q$1.(35)($LO$1)$ The floor system used in a school classroom consists of a $200mm$ Reinforced stone concrete slab $($density $=30k\frac{N}{m^3}).$ Live load for classroom: $)$

Set $a=4\mathrm{.}00m,b=d=1,00m,c=2\mathrm{.}00m.$

A$)(10)$ Sketch and calculate the loading that acts along the joist $B$ f

B$)(15)$ Sketch and calculate the loading that acts along the side girder ABCD $.$

C$)(10)$ Find the total load on Column A$.$

Si: $\frac{\text{l}\text{o}\text{n}\text{g}\text{s}\text{i}\text{t}\text{e}}{\text{s}\text{h}\text{o}\text{r}\text{t}\text{s}\text{i}\text{t}\text{e}}=\frac{4}{1}-4>2=>1$ way.

Dead loas : $(0\mathrm{.}2)(30)=6k\frac{m}{m^2}$

Sn: $\frac{4}{2}=2=>2w$ ary

D

Total bas. $6+5=11na\frac{t}{m^2}$
